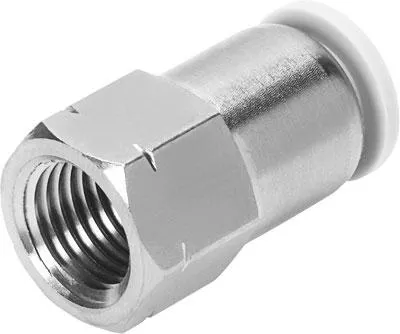

push-in fitting QBF-1/8-3/8-U female thread with external hexagon. Size=Standard, Nominal size=0,315 “, Type of seal on screw-in stud=coating, Assembly position=Any, Design structure=Push/pull principle
Specifications
| Brand Name | Festo | Item Name | Push-In Fitting with External Hexagon |
| Type | Standard, Straight | Dimensions | 8.001 mm dia x 1.299 in L |
| Material | Brass | Size | 1/8 x 3/8 in |
| Connection | FNPT x Tube | Pressure Rating | 13.775 – 145 lb/in² |
| Temperature Rating | 0 – 60 °C | Finish | Gray/Nickel-Plated |
| Standards | ISO 8573-1:2010, RoHS Compliant |
