Instantaneous irradiance measurements up to 1400 w/m2. Includes temperature, compass and inclition readings.
Specifications
| Brand Name | Fluke | Sub Brand | Fluke |

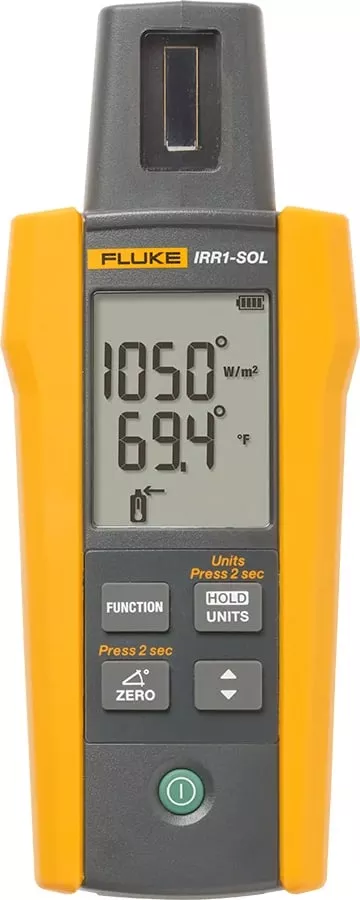

| Item Name | Solar Irradiance Meter | Display Type | LCD |
| Resolution | 1° | Audible Continuity | No |
| Diode Test | No | Temperature Range | -30 to 100 °C |
| Data Hold | No | Battery Type | (4) AAA Alkaline |
| Dimensions | 5.9 in L x 3.14 in W x 1.37 in H | Series/Model | IRR1-SOL |
| Battery Life | 50 hr | Operating Temperature | -20 to 50 °C |
| Environmental Conditions | IP40 | Includes | Temperature Probe and Carry Case with Shoulder Strap |
| Standards | CISPR 11: Group 1, Class A, IEC 62446-1, 47 CFR 15 subpart B | Application | For Measuring Solar Irradiance, Ambient and PV Module Temperature, Array Orientation and Tilt Angles |
| UPC | 009596998344 |
