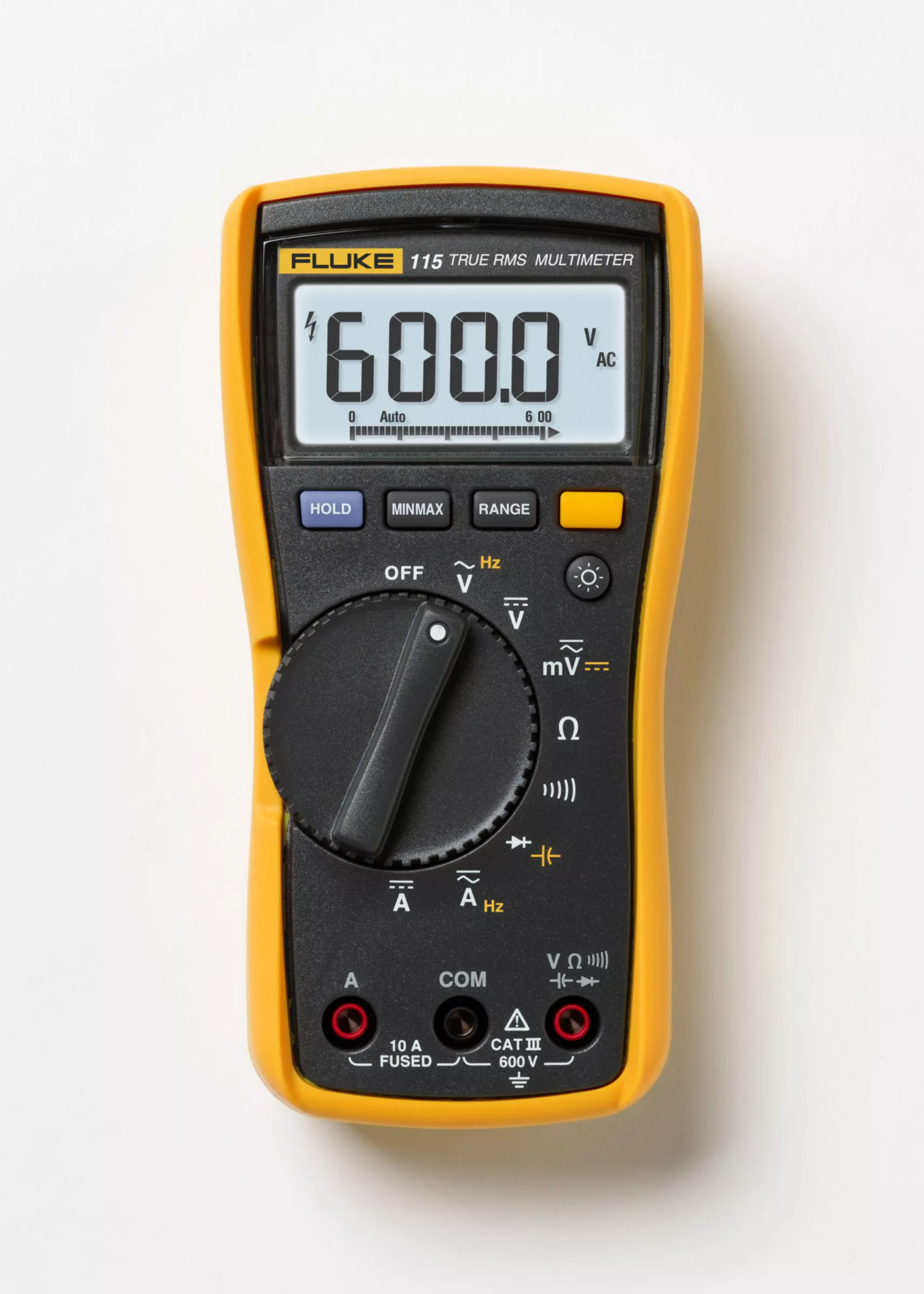

The Fluke 115 field technician’s digital multimeter measures True-rms voltage and current with plus resistance, continuity, frequency, and capacitance to meet the needs of a wide variety of field service technicians.The 115 digital multimeter offers the users one-handed operation and a backlit display. The large, easy-to-read digits offer a 6000-count resolution. The 115 provides Min/Max/Average with elapsed time to record signal fluctuations. It also measures:- AC and DC voltage to 600V,- AC and DC current to 10 A (20 A overload for 30-seconds max).
Specifications
| Brand Name | Fluke | Sub Brand | Fluke |
| Item Name | Multimeter | Type | True RMS, Digital |
| Display Type | LCD | Resolution | 0.1 mV (AC/DC), 0.001 – 0.1 VAC/VDC, 0.1 V (Auto), 1 O (Continuity), 0.1 O – 0.001 MO |
| Voltage Range AC | 6 – 600 VAC | Voltage Range DC | 6 – 600 VDC |
| Capacitance Range | 1000 nF – 100 µF | Audible Continuity | Yes |
| Diode Test | Yes | Temperature Range | -40 to 752 °F |
| Data Hold | Yes | Counts | 6000 |
| Battery Type | 9 V Alkaline | Dimensions | 6.57 in L x 3.31 in W x 1.82 in H |
| Voltage Accuracy DC | +/- 0.5% | Frequency Range | 5 Hz – 50 kHz (AC), 45 Hz – 5 kHz (DC) |
| Battery Life | 400 hr | Operating Temperature | -10 to 50 °C |
| Warranty | 3 yr | Includes | Holster, Installed Battery, 4 mm Silicone Test Lead Set, User Manual |
| Standards | IEC 61010-1 CAT III | Application | For Everyday Troubleshooting |
| UPC | 009596932418 |
