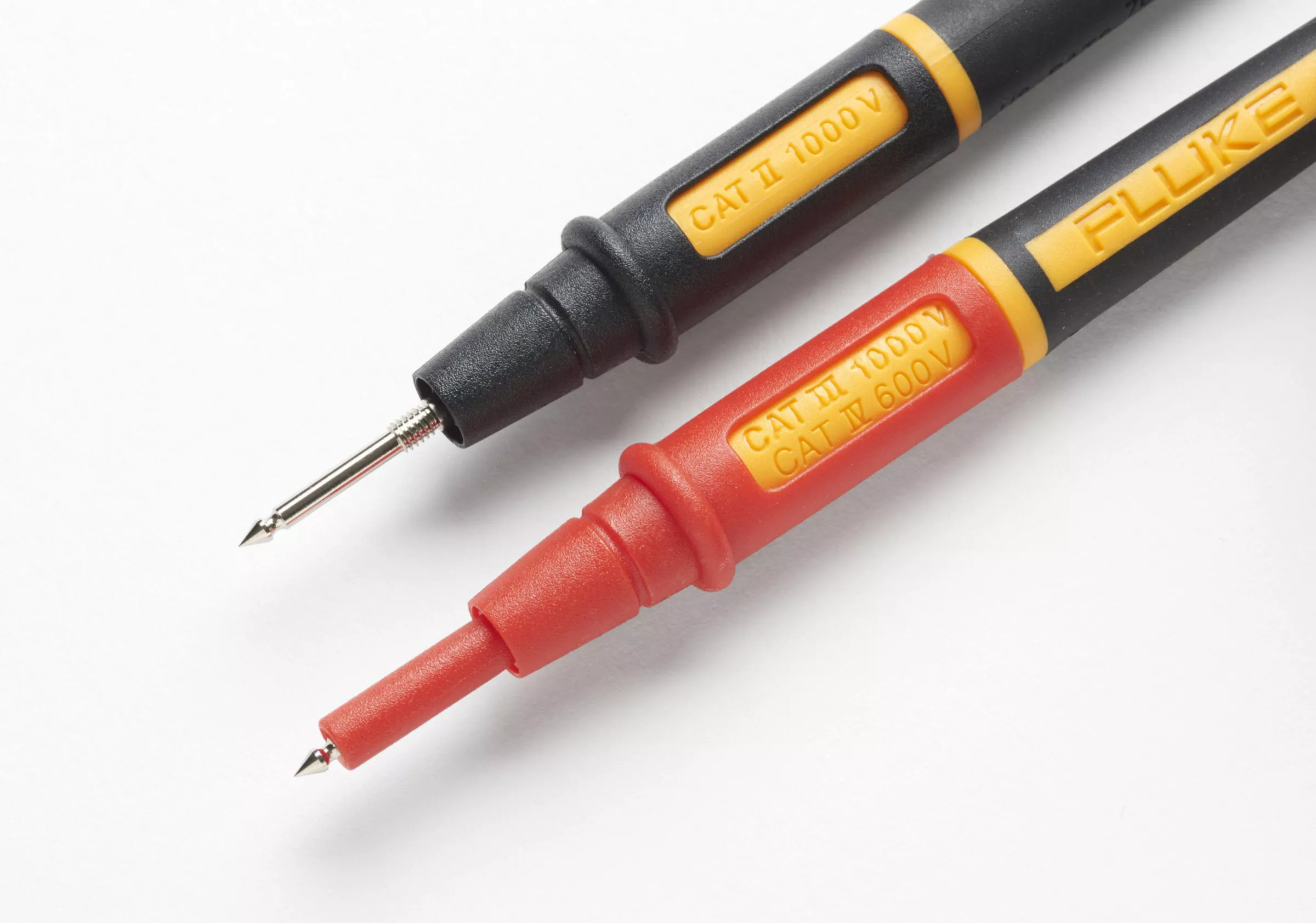

The Fluke TL175 TwistGuard™ Test Leads offer adjustable length test tips for use in different measurement environments. By simply twisting the test lead the user can change the exposed probe tip length from 19 mm to 4 mm (0.75 in to 0.16 in).The adjustable tip shroud meets new electrical safety requirements to reduce tip exposure while providing the versatility needed for most measurements. The correct category rating for the tip exposure being used is always visible on the test leads. This makes the TL175 test leads suitable for use in many environments:- CAT II 1000 V- CAT III 1000 V- CAT IV 600 V
Specifications
| Brand Name | Fluke | Sub Brand | TwistGuard™ |
| Item Name | Test Lead | Wire Size | 18 ga |
| Voltage Rating | 1000 V | Lead Length | 4.666 ft |
| Color | Black/Red | Amperage Rating | 10 A |
| Insulation Type | Silicone | Termination | Right Angle Shrouded Plug to Retractable Probe |
| Temperature Rating | -4 to 131 °F | For Use With | Any Multimeter, Clamp Meter or Test Instrument |
| Includes | Removable 4 mm Lantern Tip | Standards | EN61010-031 |
| UPC | 009596952154 |
