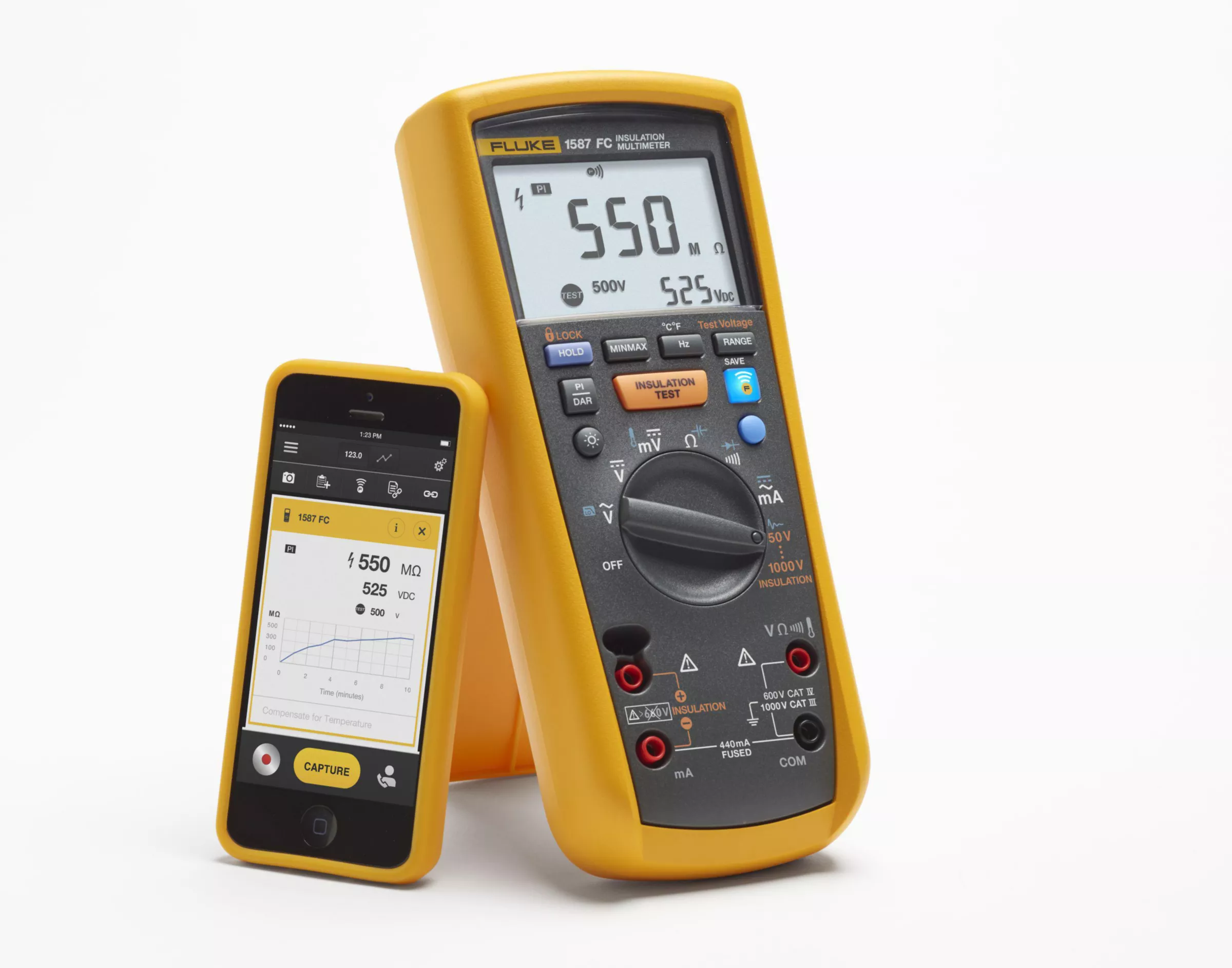

The high-performance 2-in-1 insulation DMM. The Fluke 1587 FC Insulation Multimeters combine a digital insulation tester with a full-featured, true-rms digital multimeter in a single compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance. The Fluke 1587 FC Insulation Multimeter adds four powerful new diagnostic functions through the Fluke Connect® Measurements app: – PI/DAR timed ratio tests with TrendIt™ graphs identifies moisture and contaminated insulation problems faster – Memory storage through Fluke Connect eliminates writing down results, reduces errors and saves data for historical tracking over time -Temperature Compensation through app for establishing accurate baselines and relevant historical comparisons – Historical tracking and trending of assets identifies degradation over time, allows real-time decisions to be made in the field with Fluke Connect® Assets Product highlights – PI/DAR timed ratio tests – Live circuit detection prevents insulation test if voltage 30 V is detected for added user protection – VFD low-pass filter for accurate motor drive measurements – Auto-discharge of capacitive voltage for added user protection – Insulation test (1587 FC: 0.01 M? to 2 G?) – Insulation test voltages (1587 FC: 50 V, 100 V, 250 V, 500 V, 1000 V) for many applications – AC/DC voltage, DC millivolts, AC/DC milliamps, Resistance (?), Continuity – Capacitance, diode test, temperature, Min/Max, frequency (Hz) – Auto power off to save battery power – CAT III 1000 V, CAT IV 600 V measurement category – Large display with backlight – Rugged, utility hard case allows you to bring everything you need for the job – Included accessories: Remote probe, test leads and probes, alligator clips, K-type thermocouple – Accepts optional Fluke TPAK Magnetic Meter Hanger for convenient hands free operation – Three-year standard warranty; extendable to five-years through product registration within 45 days of purchase
Specifications
| Brand Name | Fluke | Sub Brand | Fluke |
| Item Name | Multimeter | Type | FC Insulation |
| Display Type | Large Backlit | Resolution | 0.1 mV – 1 V (AC/DC), 0.01 – 0.1 mA (AC/DC), 0.1 Ohm – 0.01 MOhm, 1 nF – 1 µF, 0.01 Hz – 0.01 kHz |
| Voltage Range AC | 600 mV – 1000 VAC | Voltage Range DC | 6 – 1000 VDC |
| Capacitance Range | 1000 nF – 9999 µF | Resistance Range | 600 O – 6 MO |
| Audible Continuity | Yes | Diode Test | Yes |
| Temperature Range | -40 to 537 °C | Counts | 6000 |
| Battery Type | AA | Dimensions | 8 in L x 3.94 in W x 1.97 in H |
| Voltage Accuracy DC | +/- 0.09% | Voltage Accuracy AC | +/- 1% at 600 mV – 600 V, +/- 2% at 1000 V |
| Amperage Range AC | 60 – 400 mA | Amperage Accuracy AC | +/- 1.5% |
| Amperage Range DC | 60 – 400 mA | Amperage Accuracy DC | +/- 0.2% |
| Frequency Range | 99.99 Hz – 99.99 kHz | Resistance Accuracy | +/- 0.9% |
| Battery Life | 1000 hr | Operating Temperature | -20 to 55 °C |
| Environmental Conditions | IP40 | Warranty | 3 yr |
| Includes | Remote Probe, Test Leads, Alligator Clips, K-Type Thermocouple, Hard Case, User Documentation | Standards | CSA, CE Certified, N10140, TUV Listed, KCC, FCC, IEC 61010-1, IEC 61010-2-033 |
| UPC | 009596979662 |
