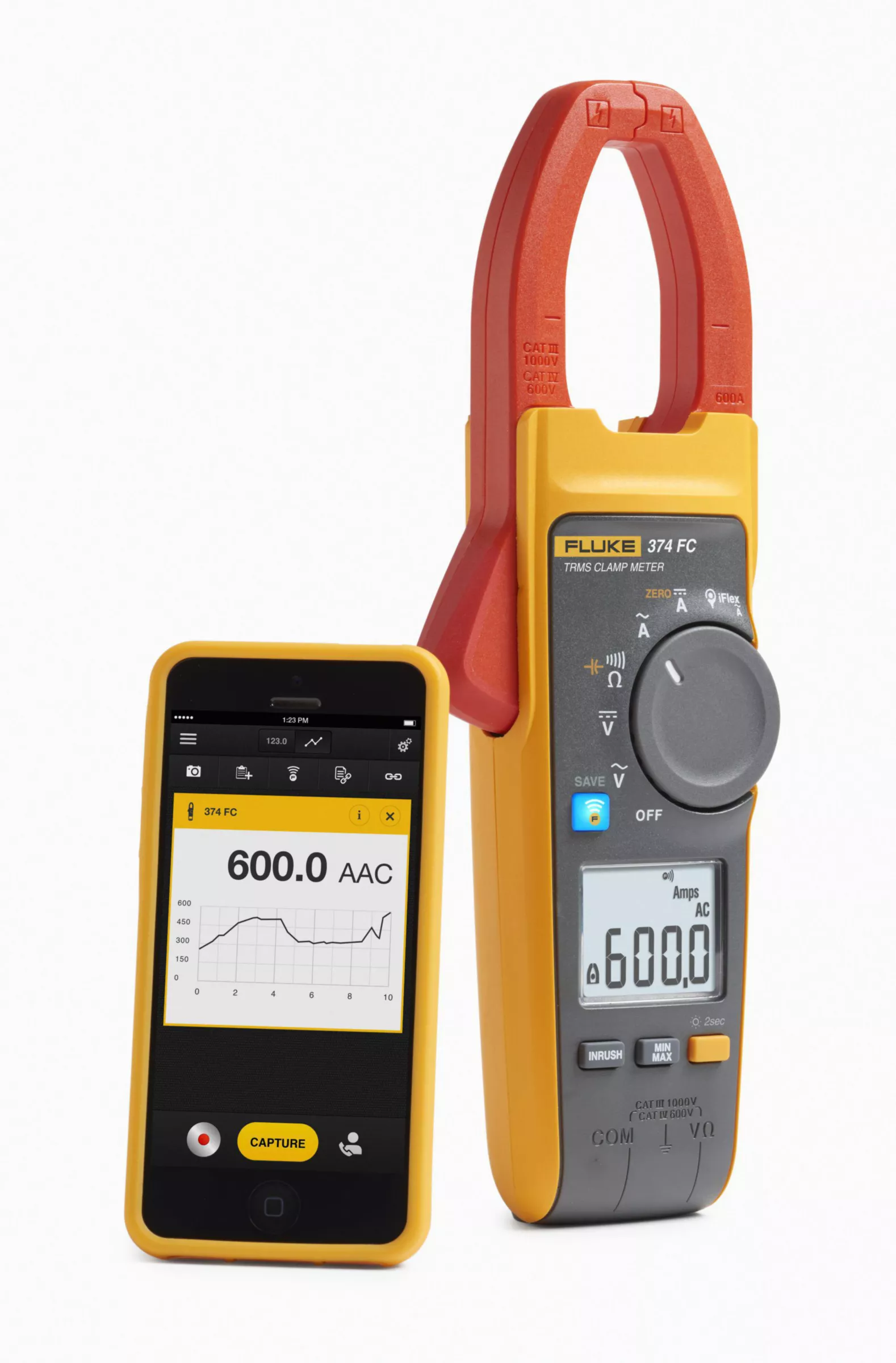

The Fluke 374 FC is part of the Fluke Connect family of wireless test tools. Now you can: – Trend measurements and pinpoint intermittent faults by connecting your meter to your phone via Fluke Connect® Measurements app – Transmit results wirelessly via Fluke Connect® Measurements app – Create and send reports right from the field – Stay safely away from the arc flash zone through Bluetooth connectivity to Apple and Android devices Features: – Connect your meter to your smartphone with Fluke Connect Measurements – Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks – Record results directly to your phone and the Cloud – Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls – Compatible with iFlex flexible current probe; use to expand the measurement range to 2500 A ac; provides access to large conductors in tight spaces – Compatible with TPAK magnetic hanging strap – Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it – CAT IV 600 V, CAT III 1000 V safety rating – Three-year warranty – Soft carrying case Measurement Capability: – 600 A ac and dc current measurement – 2500 A ac current measurement with (optional) iFlex flexible current probe – 1000 V ac and dc voltage measurement – True-rms voltage and current for accurate measurements on non-linear signals – Resistance measurement to 6000 ? with continuity detection – Min, max, average, and inrush recording to capture variations automatically – 1000 ?F capacitance measurement
Specifications
| Brand Name | Fluke | Item Name | Clamp Meter |
| Type | True RMS, AC/DC | Jaw Capacity | 1-5/8 in |
| Display | LCD | Resolution | 0.1 A (AC/DC), 0.1 mV (DC), 0.1 – 10 O, 0.1 – 1 µF, 0.1 Hz |
| AC Voltage Range | 1000 VAC | DC Voltage Range | 1000 VDC |
| Capacitance | 1 – 1000 µF | Resistance | 6000 O |
| Audible Continuity | Yes | Diode Test | No |
| Data Hold | Yes | Counts | 6000 |
| Battery Type | AA Alkaline | Amperage Range | 600 A |
| Accuracy | +/- 2% (AC/DC Amperage), +/- 1.5% (AC Voltage), +/- 1% (DC Voltage/mV DC/Resistance), +/- 0.5% (Frequency), +/- 1% (Capacitance) | Dimensions | 249 mm L x 85 mm W x 45 mm H |
| Operating Temperature | -10 to 50 °C | Environmental Conditions | <90% RH Operating Humidity, 3000 m Altitude |
| Weight | 395 g | Warranty | 3 yr |
| Includes | Soft Carrying Case, TL75 Test Leads, (2) AA Alkaline Batteries, Coated Instruction Card, Safety Information Sheet | Standards | IEC 61010-1, CAT III 1000 V/CAT IV 600 V, IEC 60529 Safety, KCC, FCC Approved, CE Marked, CSA Certified, TUV Listed |
| Application | For used to Capture Measurements Outside the Arc Flash Zone | UPC | 009596979853 |
