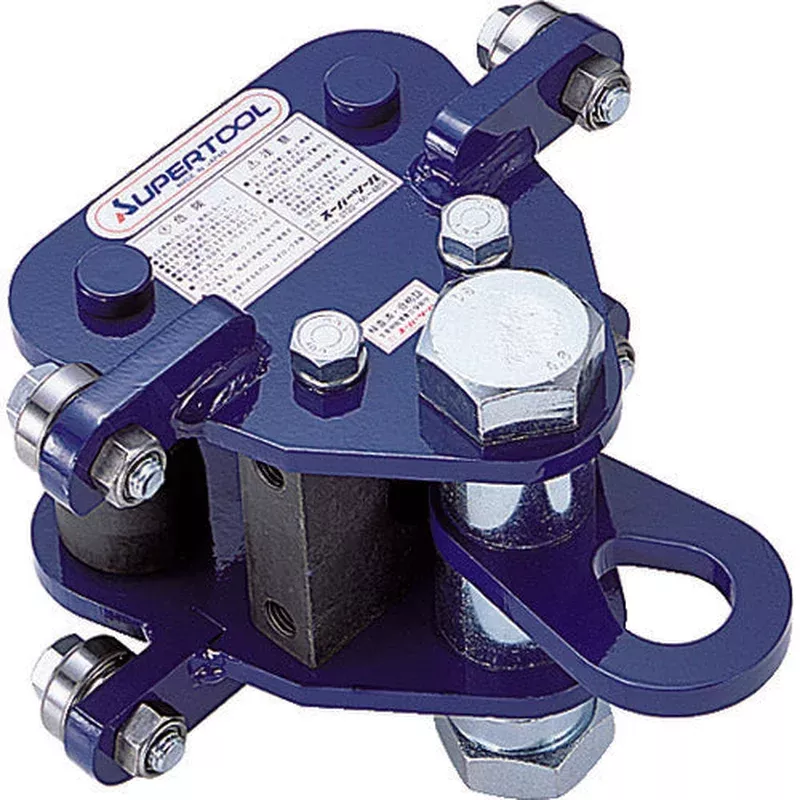

Features You can build the best system by freely designing according to the installation location and work situation. It is possible even if the running rails are not parallel. (It can be installed according to the building form.) It is also possible to use curved running rails. (Can also handle non-linear work) The rail uses commercially available H (I-shaped) steel, so it is very inexpensive and can be easily installed using ceiling beams. (Can also be moved after installation) The free crane moves lightly and smoothly, and can be used in conjunction with an electric chain hoist for simultaneous three-dimensional operation.
Use
Specification Rated load (t): 0.25Applicable rail width (mm): 50, 75Minimum turning radius (mm): 1000Dimensions (mm)D: 220Dimensions (mm)H: 42Dimensions (mm)L :12Dimensions (mm)C: 100Dimensions (mm)K: 54
Specification2 Lifting height: Any Usable range: Limited to between running rails Dimensions (mm) G: 117 Dimensions (mm) I: 10 Dimensions (mm) J: 34
Material/Finish
Set contents/accessories
caution
