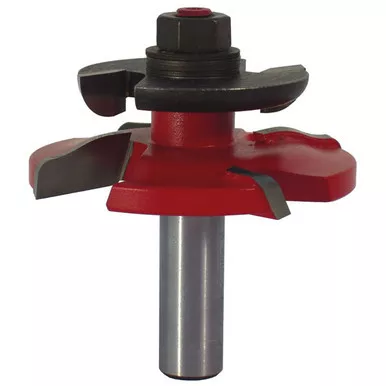

Exclusive Quadra-Cut™ design combines a backcutter with the smooth cuts of Freud’s Quadra-Cut Raised Panel Bits
- Shims are included to allow adjustment of tongue thickness from 7/32″ to 1/4″ for maximum versatility and compatibility.
- Patented design allows these bits to produce a full 1-1/2″ wide reveal for traditional raised panel doors.
- Included 54-562 radius backcutter gives double-sided appearance and can be replaced with optional 54-560 square backcutter for a more contemporary look.
- Cuts all composition materials, plywoods, hardwoods, and softwoods.
- Use on table-mounted portable routers.
- Ideal For: Creating beautiful raised panels for cabinet doors or wall paneling
- Machine Use: Router
- Materials: Wood
| Overall Diameter | 2-19/32” |
| Carbide Height | 7/8” |
| Large Radius | 3/4” |
| Shank Diameter | 1/2” |
| Overall Length | 2-51/64” |
