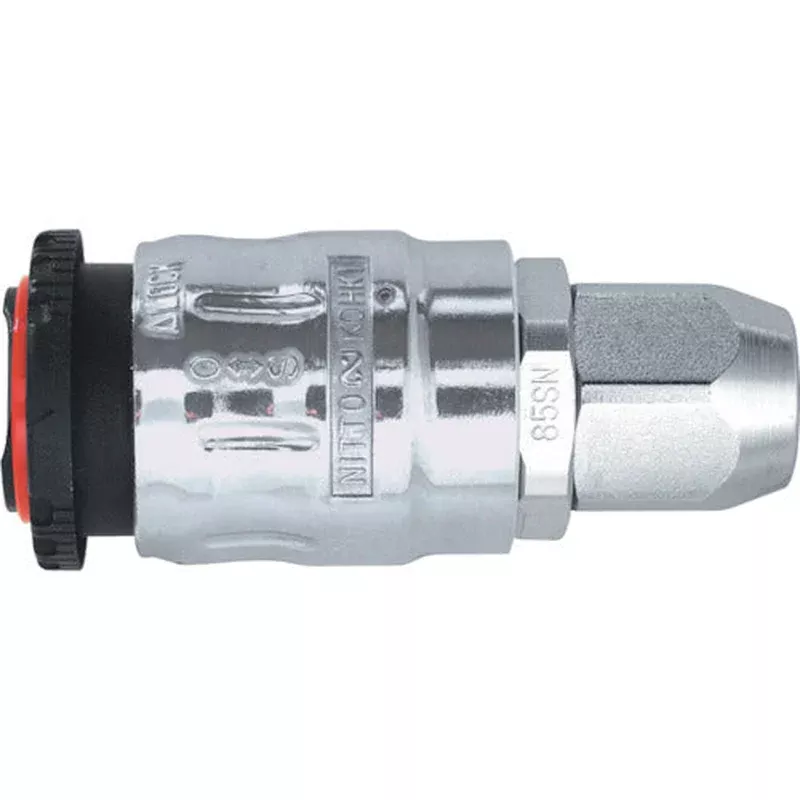

Features The industry’s first fully open type valve achieves low pressure loss and large flow rate. Connection with the plug can be done when the internal pressure is 0. When the bubble is closed during separation, the residual pressure on the plug side is exhausted, eliminating recoil and unpleasant noise. Achieved low pressure loss and large flow rate by closing the valve when connecting and disconnecting. You can expect a maximum flow rate increase of approximately 40%.
Use
Specification Proof pressure (MPa): 2.0Mating hose size (mm): 8.0 12.0Fluid used: AirOperating temperature range ( ): -20 to 60Maximum working pressure (MPa): 1.5
Specification2 One-way open/close type For urethane hose installation Applicable fittings: Nitto Kohki high coupler type
Material/Finish Body: Aluminum alloy Seal rubber: Nitrile rubber (NBR)
Set contents/accessories
caution
