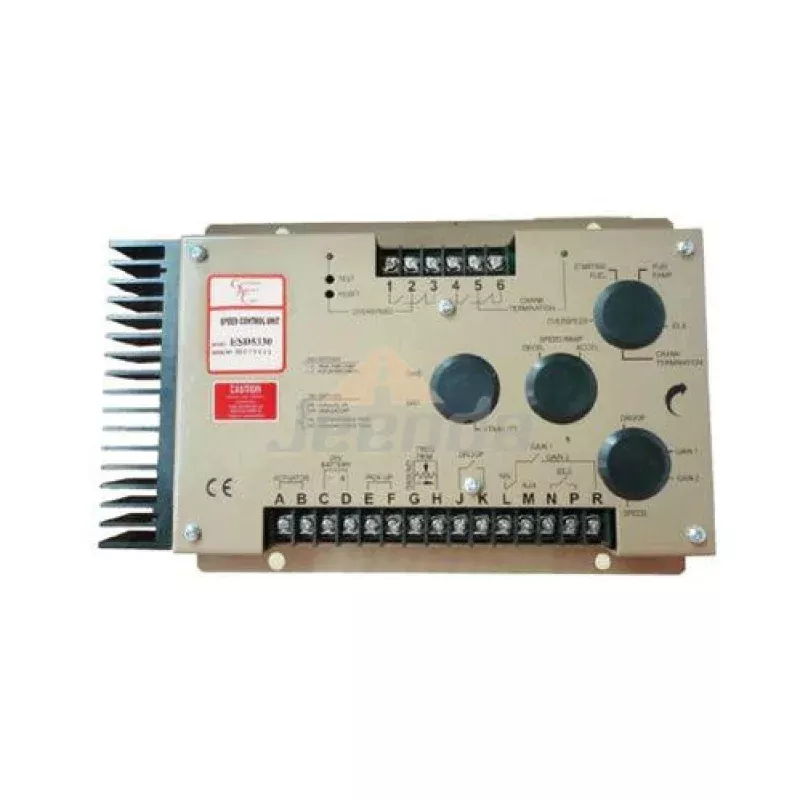

Diesel Engine Controller Type speed control unit generator set governor ESD5330
Technical Data:
Input
- Supply 24 20% VDC battery systems ( transient and reverse voltage protected)
- Polarity Negative Ground (Case Isolated)
- Power Consumption 100 MA (No actuator current)
- Maximum Actuator Current Internally limited to 9 A continuous
- Speed Sensor Signal 0.5-50 Volts RMS
Performance
- Isochronous Operation/Steady State Stability 0.25% or better
- Speed Range/Governor 1K to 7.5K Hz continuous
- Speed Drift with Temperature 1 Max
- Idle Adjust CW 25-85% of rated speed
- Droop Range Adjustable from 0-5% for a 1.5 A actuator current change
- Droop Adj. Max. (K-L Jumpered) 400 Hz., 75Hz. Per 1.0A change
- Speed Trim Range 200 Hz
- Remote Variable Speed Range 25 to 100% of rated speed
- Terminal Sensitivity H -105 Hz, 15 Hz/Volt @ 5 K Impedance
- Terminal Sensitivity M -130 Hz, 15 Hz/Volt @ 1 M Impedance
- Terminal Sensitivity K -685 Hz, 40 Hz/Volt @ 225 K Impedance
- Terminal Sensitivity N +1000 Hz, 50 Hz/Volt @ 8 K Impedance
Environmental
- Ambient Operating Temperature Range -40 to +85 Deg. C
- Relative Humidity Up to 95%
- All Surface Finishes Fungus Proof and Corrosion Resitant
Reliability
- Vibration 1G at 20 to 100 Hz.
- Shock 10 G (11 ms)
- Testing 100% Functionally Tested
