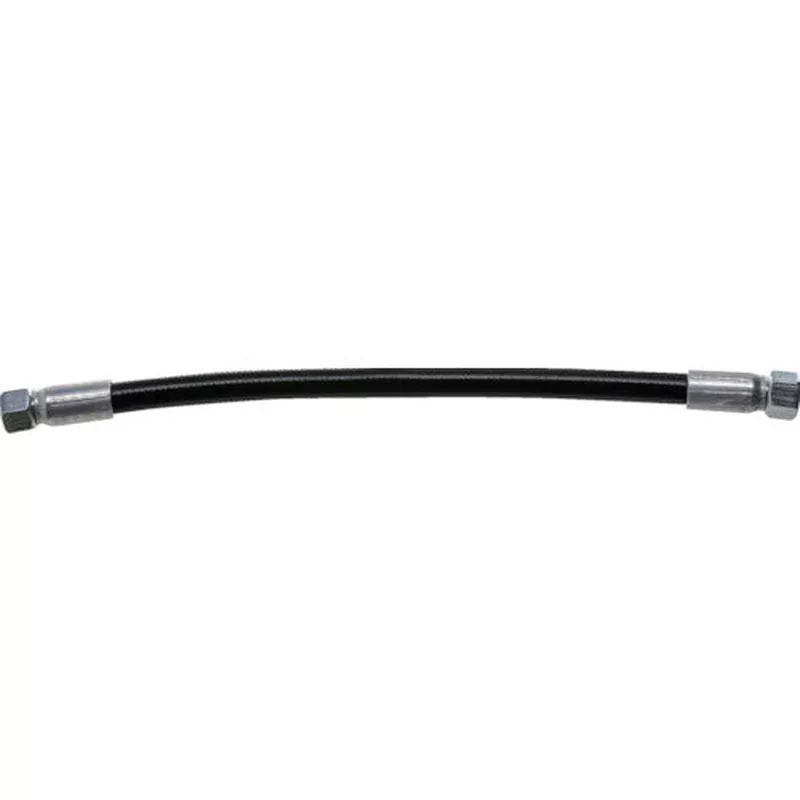

Features Please note that this product will be shipped at a later date because the hose is cut and the joints at both ends are caulked. As this is a processed product, please refrain from returning it. Parker’s 471TC hose is a hydraulic industry standard hose with a pressure range of 2500 to 5800 psi and features a synthetic rubber inner tube that provides compatibility with a wide range of fluids.
Use For machine tools and other hydraulic equipment in general.
Specification Length (m): 100Inner diameter (mm): 10.0Outer diameter (mm): 17.0Working pressure (MPa): 35.0Allowable bending radius (mm or more): 65Working temperature range ( ): – 40 +100 Dash designation: 6
Specification2 Hose: ISO18752 standard (pressure standard) and SAE standard (structural standard)
Material/Finish Synthetic rubber
Set contents/accessories
caution Because the hose is cut and the joints at both ends are caulked, returns are not possible. Please check the size before ordering.
