Product Description

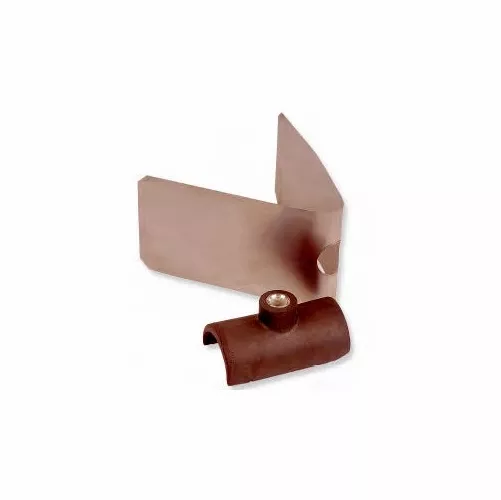

GENERAL MACHINE PRODUCTS 08669 FLANGE PRESSURE F10/PK NEWThis combination flange and fitting is ideally suited for use at pressure reading points, bypasses or air inlets at any 3/4 in. (19 mm) dia. or larger cable.The flange’s 1/8 in female pipe thread can accept a wide range of fittingsThe assembly can be used with any standard valve, tee or elbow with a 1/8 in male NPT threadNeoprene saddle impregnated on the underside with mastic, which, in turn, is protected by a strip of release paper.A 1 in. (25.4 mm) hole in the mastic leads up to the flange with a metal inset.A strip of thin stainless steel is included with a small hole punched in the middle to cover and shield the saddle.Two sealing Clamps are needed for each flange you want to install.F Pressure Flange (10 per package)P/N 08669 Weight: 15 oz. (.42 kg)
