GMP 70283 3 inchMANHOLE SHEAVE- LIP ROLLER SHIPS LTL FREIGHT

Product Description

---

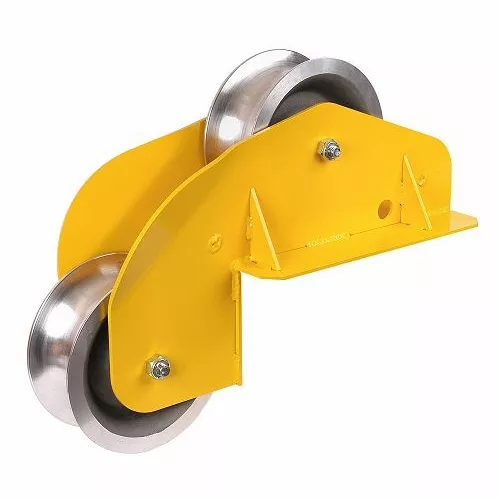

GENERAL MACHINE PRODUCTS 70283 3″ MANHOLE SHEAVE- LIP ROLLER NEWThe Manhole Sheave or “Pittsburgh” is used to guide pulling line or cable over the manhole edge when placing and removing cable in manholes which are equipped with pulling in irons to support a sheave and shackle assembly.Consists of a reinforced, heat-treated wrought aluminum alloy frame with two self-lubricating, bronze bushed aluminum sheavesThe frame also has a hole in each side plate so you can insert a 1 1/4 in. (32 mm) dia. digging bar parallel to the ground to keep the sheave from being knocked into the manholeApproximate overall unit dimensions: 30 in. (762 mm) L x 12 in. (305 mm) W x 22 in. (559 mm) HSheaves are available to accommodate cable up to 3 in. (76 mm), 4 in. (100 mm) or 5 in. (130 mm) diametersStandard units are rated at 36,000 lbs. (16 kN) The 80975 heavy duty 5 in. model is rated for 45,000 lbs. (20 kN)Ordering Information:P/NMax. Cable DiameterWeight——————————————————————————–702833 in. Manhole Sheave32 lbs. (14 kgs)702844 in. Manhole Sheave55 lbs. (24 kgs)702855 in. Manhole Sheave65 lbs. (29 kgs) 809755 in. (Heavy Duty)65 lbs. (29 kgs)SHIPS LTL FREIGHT
