Product Description

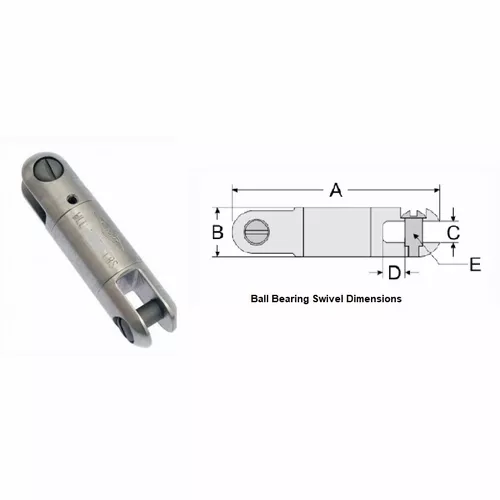

GMP 71137 SWIVEL BALL BEARING 5000 HEX NEWGMP 71137 SWIVEL BALL BEARING 5000 HEX NEWP/N 71137 Ball Bearing SwivelWorking Load Limit Under Ground5,000 lbs. (22.2kN)Working Load Limit Aerial3,000 lbs. (13.3kN)Eye Width17/32 in (13.5mm)Repl. Pin 33156HexWeight.95 lbs (.43 kg)Dimensions:A4.75 in. (120.6mm)B1.24 in. (31.5mm)C .53 in. (13.5mm)D.53 in. (13.5mm)E.399 in. (10.1mm)These tough swivels are designed to handle higher thrust loads for extra cable safety and faster straight pulls.Precision-machined body is made of high quality stainless steel with higher working load ratings than comparably sized swivels available on the marketThese heavy-duty swivels are built with a thrust bearing for tensile load and a radial bearing for bending loadWorking Load Limit for under ground applications is based on a horizonal pull of 3:1 while aerial applications have a WLL of 5:1CAUTION: To be used for underground cable installation only. These swivels are Not Designed for Directional Drilling applications. They are designed for pulling cable or rope. Do not allow these swivels to be pulled around a bullwheel or capstan. Damage to the swivel and/or wheel may occur.
