Product Description

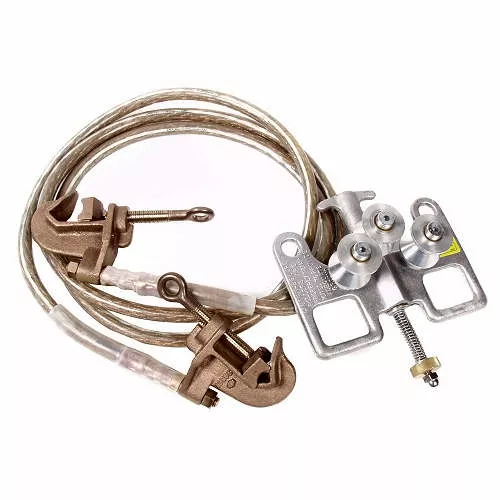

GENERAL MACHINE PRODUCTS 71637 KITTRAVELING GROUND NEWThe grounding roller provides a means of maintaining a continuous ground connection to moving conductors such as strand, open wire, or pull line being placed from a stationary reel.The roller must be connected to a suitable ground by means of one of the 1/0 jumper cables provided in order to minimize the voltage on the conductors mentioned above in the event of an accidental contact with an energized power conductor.Kit comes complete with: 1 each, aluminum, 3 roller, traveling ground equipped with two 5/8 in. (16 mm) buss bars for 2 jumper cable and clamps and two each, 1 in. (25 mm)tie back holes in frame. 1 each, jumper cable composed of 30′, 1/0, clear PVCGrounding roller on messenger strandjacketed, copper jumper cable with each end fitted with copper compression ferrules and two 5/8 in. (16 mm) – NC threaded bronze grounding clamps. 1 each, jumper cable composed of 2 ft (.61 m), 1/0 clear PVC jacketed, copper jumper cable with each end fitted with copper compression ferrules and two 5/8 in. (16 mm) – NC threaded bronze ground clamps. 1 each, instruction card which outlines use of grounding kit as per OSHA requirements.Consult factory for jumper lengths.Traveling Ground KitP/N 71637 Weight: 29 lbs. (13 kgs
