Product Description

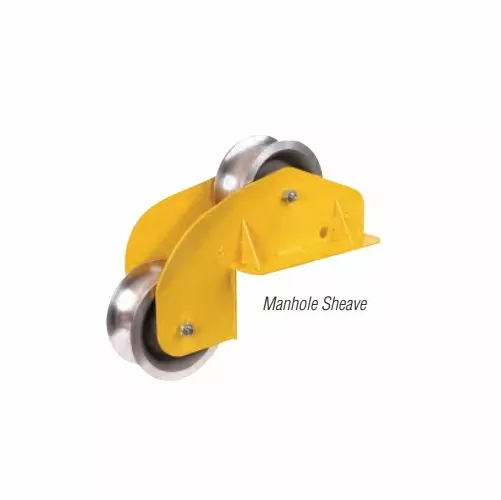

GMP 80975 SHEAVE MANHOLE 5 inchHEAVY DUTY NEW SHIPS LTLGMP 80975 SHEAVE MANHOLE 5 inchHEAVY DUTY NEW SHIPS LTLP/N 80975 5 in. Heavy Duty Manhole Sheave Weight74 lbs. (34 kgs)SHIPS LTL FREIGHTThe Manhole Sheave or “Pittsburgh” is used to guide pulling line or cable over the manhole edge when placing and removing cable in manholes which are equipped with pulling in irons to support a sheave and shackle assembly.Consists of a reinforced, heat-treated wrought aluminum alloy frame with two self-lubricating, bronze bushed aluminum sheavesThe frame also has a hole in each side plate so you can insert a 1 1/4 in. (32mm) dia. digging bar parallel to the ground to keep the sheave from being knocked into the manholeApproximate overall unit dimensions: 30 in. (762mm) L x 12 in. (305mm) W x 22 in. (559mm) HSheaves are available to accommodate cable up to 3 in. (76mm), 4 in. (100mm) or 5 in. (130mm) diametersStandard units are rated at 7,500 lbs. (3.3kN) The 80975 heavy duty 5 in. model is rated for 10,000 lbs. (4.4kN)
