Product Description

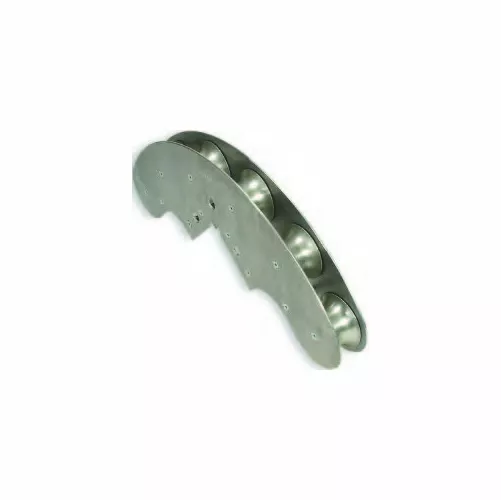

GENERAL MACHINE PRODUCTS 84454 BLOCK QUADRANT 4″ CABLE NEWUsed to guide the pulling line or cable during underground cable placement or removalConsists of six cast aluminum sheaves supported in an aluminum frame to provide a bending radius of 24″Each sheave is housed in a sturdy aluminum housing that is mounted on a self lubricating bushing for smooth movement and a long, maintenance free lifeAvailable to accommodate 3″ (84453), 4″ (84454) or 5″ (84455) cable diametersEach side plate has holes to insert a 1 1/4″ digging bar to keep the block from being knocked into the manholeCan also be used with a Cable Sheave Shackle to suspend in the manhole as an alternative method of useP/N Max. Cable Size Weight——————————————————————————–84453 3 in. (76 mm) 60 lbs (27 kgs) 84454 4 in. (102 mm) 75 lbs (34 kgs) 84455 5 in. (127 mm) 90 lbs (40 kgs)
