Product Description

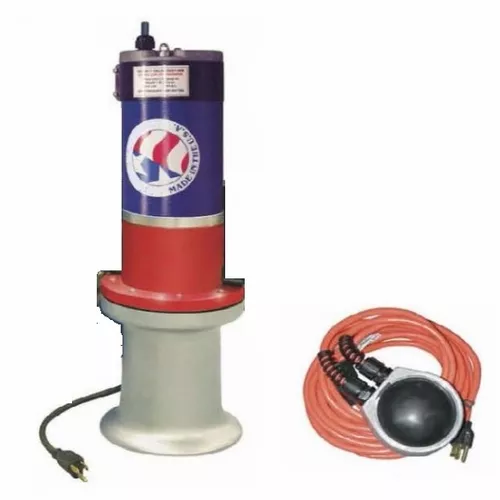

GMP General Machine Products 89600 WINCH CAPSTAN 1000 lb WITH FOOT CONTROLGMP General Machine Products 89600 WINCH CAPSTAN 1000 lb WITH FOOT CONTROLP/N 89600 Electric Capstan Hoist and Foot Switch1,000 lb. (454kg) capacityWeight48 lbs. (21.7kg)This versatile 1,000 lb. (454kg) capstan is the perfect partner for overhead and underground lifting and pulling applications. The unit is small and lightweight, making it perfect for use in remote and limited access areas.Safety Features:1,000 lb. (454kg) capacityLightweight (only 38 lbs. (17kg) w/o universal bracket)Power Source: 115 Volt AC40 ft./min. (12.2 m/min) Rope SpeedRemote Foot Control Switch includedSteel capstan drum with larger radius at load-line wrap and zinc-plated rope surfaceSimplify Heavy Tasks:Raising TransformersHoisting Heavy InsulatorsStringing and TensioningSetting Utility PolesPulling Underground CableOrdering Information:P/NDescriptionWeight89600Electric Capstan Hoist and Foot Switch48 lbs. (21.7kg)89620Steel Storage Case36 lbs. (16.3kg)89621Rope Lock Device2 lbs. (.91kg)89622Universal Bracket26 lbs. (11.7kg)89610** Electric Capsan Hoist Kit112 lbs. (51kg)
