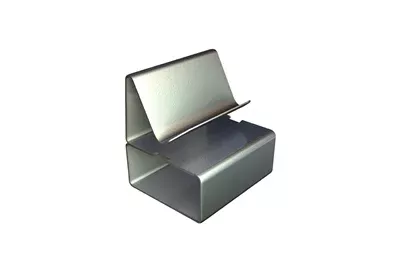

GRABBER PanelMax Column and Beam Drywall Clip, (60/box)The CB60 Column and Beam Drywall Clip by Grabber Construction Products offers a fast, easy, and cost-efficient way to construct UL Classified fire-rated steel columns and beams by attaching drywall around the columns and beams for fire protection.
Specifications
Coating:Hot-Dip Galvanized
Min. Tensile Strength:39 ksi
Min. Yield Strength:33 ksi
Packaging Type:Box
Material Thickness:0.0180 in.
- Fast and convenient way to wrap columns and beams for fire-resistance requirements.
- Clips are hand applied and friction fit for easy installation.
- Fewer materials required and fast installation offers significant labor and material savings.
- Large flat surface area for easy fastener penetration and to accept multiple fasteners if needed.
- The clip complies with ASTM A653 and A1003 performance requirements.
-
These are basic installation guidelines. Please see the CB60 Column and Beam Drywall Clip document for detailed installation instructions for the multiple UL Fire-resistive assemblies that utilize the CB60 clip. Slide the CB60 clip onto the flanges of the column or beam.
- Trim the first layer of gypsum board to the outside edge of the CB60 clip.
- Gypsum board will be cut and positioned such that only one joint terminates at any outside corner, with the subsequent layer overlapping the underlying joint.
- Attach the gypsum board with Grabber Type S screws.
- Finish the assembly with the specified type, thickness and layers of gypsum board, corner bead, and joint compound.
1 Hour Column: X528
2 Hour Column: X517, X520, X523, X528, X535
3 Hour Column: X513, X528, X535
4 Hour Column: X522, X535
2 Hour Beam: N501, N502
3 Hour Beam: N505
