- Straight Arm 170 degree hinge bundle for frameless cabinets with overlay doors.
- These hinges can be used to replace old Mepla brand hinges which have a 48mm screw hole center to center spacing.
- You will no longer find new hinges with “Mepla” stamped on them, as Mepla and Grass merged in 2007 to simply become Grass.
- Also available in a 42mm screw hole spacing dimension.
- Please see the “How to Select Your Mounting Plate” document below to verify if this bundle will work for your application and determine which mounting plate is needed.
Features
- Four different adjustments:
- Depth adjustment (+3mm and -1mm)
- Side adjustment / Overlay (+1mm and -3mm)
- Height adjustment (+2mm and -2mm)
- See the document found under Downloads for information on how to adjust
Details
- Hinge cup size is 35mm (1-3/8″). Cup depth is 11mm (7/16″).
- Door opening angle is 170 degrees
- Works for bore distances from 3mm (1/8″) to 8mm (5/16″)
- Works for overlay dimensions from 9mm (11/32″) to 22mm (7/8″)
- Works for door thicknesses up to 32mm (1-1/4″)
What’s Included

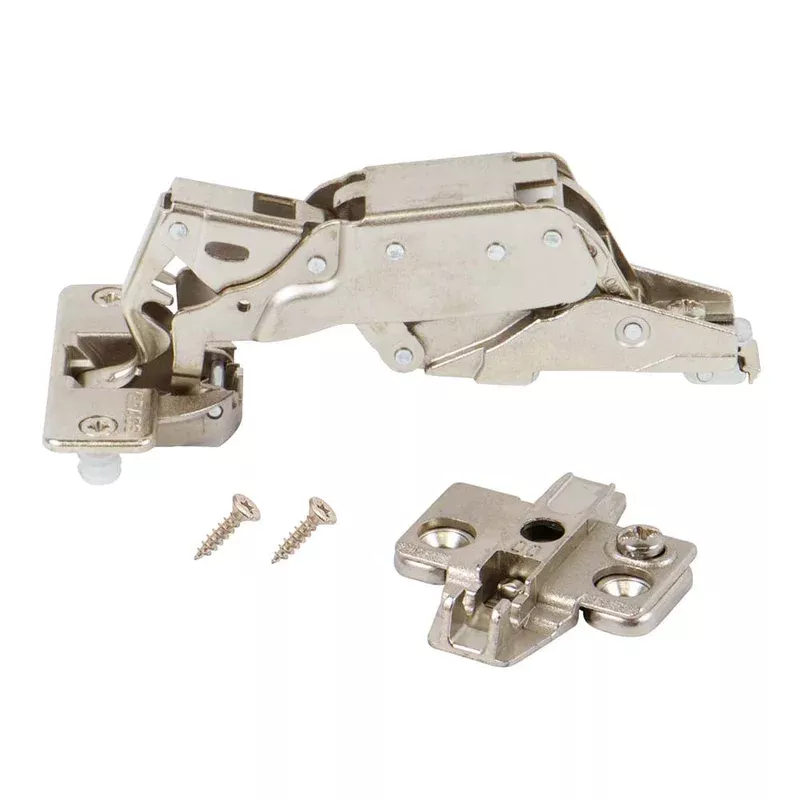

- 1 x Grass “Nexis 170” Straight Arm Hinge
- 1 x Frameless Mounting Plate (three options available depending on desired overlay dimension)
- 2 x 6 Screws for the Mounting Plate
- 2 x Plastic Dowels and Dowels Screws (pre-attached to the hinge) – Dowels are typically used on manufactured wood or MDF doors because they hold better than wood screws. If you have a solid wood door, discard the plastic dowels and use either the dowel screws (blunt and slightly shorter) that come with the hinge or purchase 6 flat head wood screws (two per hinge, our SKU 652360).
Available for purchase separately:
-
Soft-Close Add-On Device – Eliminates slamming of the door and dampens the closing action. (SKU 701807)
- Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
- 6 flat head wood screws for the hinge side, can be used in place of the included plastic dowels and dowel screws (SKU 652360)
- 35mm Forstner Bit, for new installations (SKU 204000)
