Features
-
For engaging an additional 36″ of screeding guide to the end of the Standard Quick-Pitch (ref. QPK-101) stick length
-
Add a seamless continuation of slope when walls are up to 72″ from the drain location
-
Extended float sticks are 36 long and go from 1-3/4 to 2-1/2″ tapered
-
Easy to cut lengths needed
-

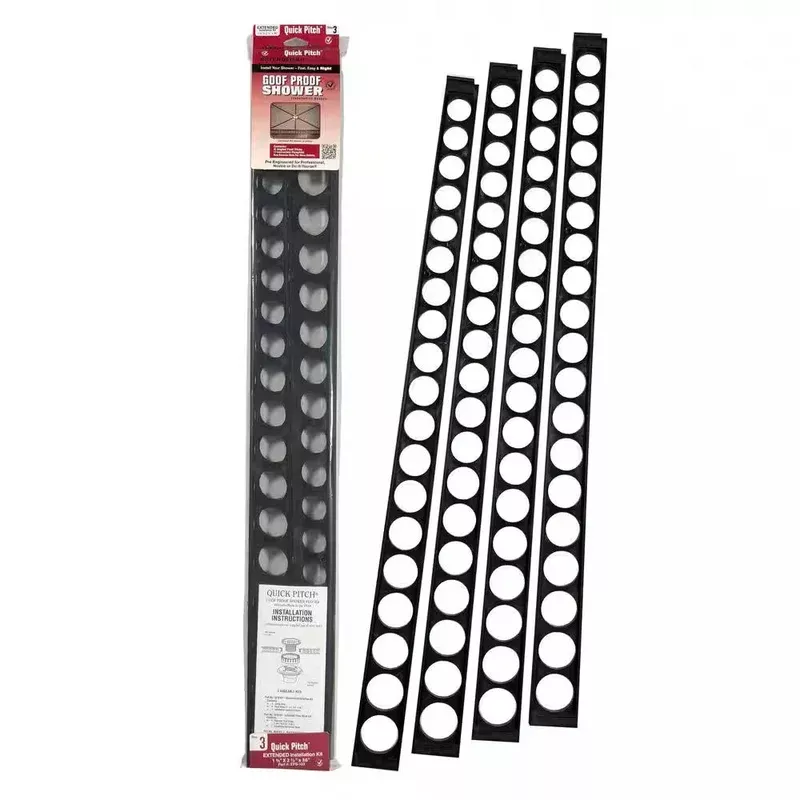

Includes: (4) extended float sticks, installation manual
The Quick-Pitch Float Stick System permits easy construction of shower floors with the proper minimum water drainage slope of 1/4 per 12 run. With this time-saving system there is now no chance for an error in measurement, or the need for a level, to achieve a properly sloped shower floor. The Quick Pitch Float Stick System uses a Center Ring and tapered Float Sticks to assure the correct drainage slope in standard or custom shower areas with walls up to 6 in any direction from the floor drain. This system does not add to the pan liner pre-slope as the Center Ring sits on top of the drain flange bolts.
