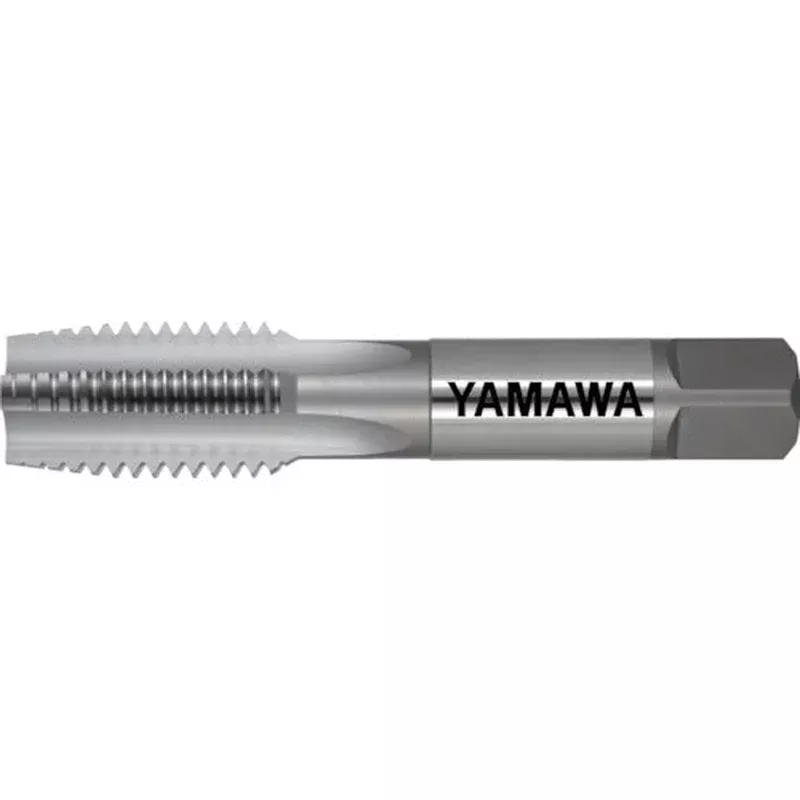

Features A tap suitable for tapping high-hardness materials of 30 to 45 HRC, such as forged products of high carbon steel and alloy steel, tempered materials, and mold materials. Durability has been significantly improved by using a cutting edge shape suitable for difficult-to-cut materials and materials with excellent wear resistance.
Use Work material: For tempered steel and tool steel.
Specification Tip: Medium Accuracy: P4 Accuracy notation: P class Nominal size: M24Pitch (mm): 1.5Thread length (mm): 39Overall length (mm): 120Shank diameter (mm): 19 Shank square part (mm): 15 Prepared hole diameter (mm): 22.60 Processing thread: metric thread Surface treatment: Non-coating Number of grooves: 4 Number of biting threads: 5
Specification2 Number of biting threads: 5 Shank length (mm): 55 Shank square part length (mm): 18
Material/Finish High-speed tool steel: Cobalt HSS (HSS-Co)
Set contents/accessories
caution
