Product Description

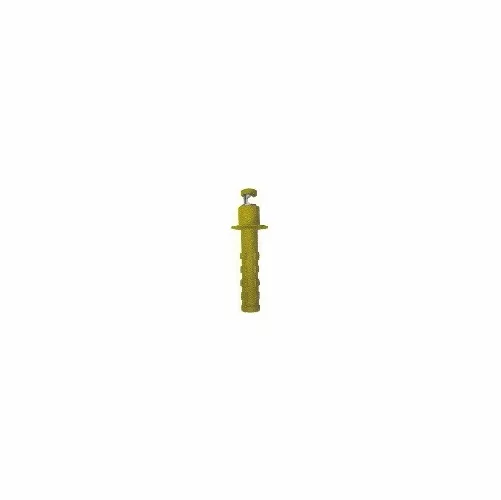

HASTINGS 11000Large Range Jumper Clamp Qty. 1 YellowHASTINGS 11000Large Range Jumper Clamp Qty. 1 YellowHASTINGS 11000Large Range Jumper Clamp Qty. 1 YellowWeight2.7 lbs.MECHANICAL JUMPER CLAMPS- LARGE RANGE JUMPER CLAMP YELLOW- Easy to install- Thrust bearing design provides low friction for tightening clamp- Bronze clamping rings have serrated contact surface to insure good electrical contact with conductors- Two styles available…—-Yellow handles are made from bright yellow, impact resistant modified polyolefin material—-Clear handles are made from a high impact plastic material- Grip tabs are molded in for easy gripping with rubber gloves- Conductor clamp is machined from brass alloy- Rated for 400 amps continuous current maximum rating – this rating is dependent on the rating of the jumper cable used with the clampsSpecifications- Main Line Range:Maximum- 954 ACSR 36/1- Main Line Range:Minimum -6 SOLID .162 DIA- Jumper Cable Range:Maximum- 4/0 15KV, 1/0 25KV, 1/0 35KV- Jumper Cable Range:Minimum- 2 15KV
