Product Description

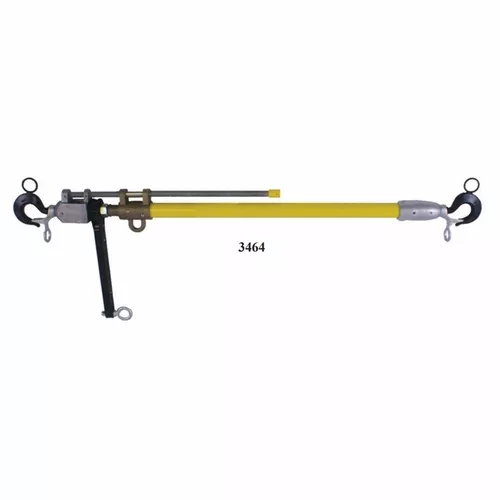

HASTINGS 34645/35KV Conductor Tensioning ToolHASTINGS 34645/35KV Conductor Tensioning ToolHASTINGS 34645/35KV Conductor Tensioning Tool- Model Tensioning Tool :5/35 KV- Working Range :57 inches to 69 inches- Maximum Take Up :12 inchesInsulationMin. / Max. :26 inches to 36 inches- Length Stored :59 inches- Length Extended:71 inches Weight12 lbs.CONDUCTOR TENSION TOOL- The conductor tension tool is excellent for both hot stick and rubber gloving applications- Used for temporarily isolating sections of lines, changing out dead end insulators and line splicing- Load limit 4,000 lbs.- Installed and operated using hot sticks- Two models available, 5KV to 35KVOR46KV to 69KV- Conductor hooks have hot stick eyes and hot stick operable safety latches. Hooks are stationary.- Metal components are heat treated aluminum alloy or bronze alloy
