Product Description

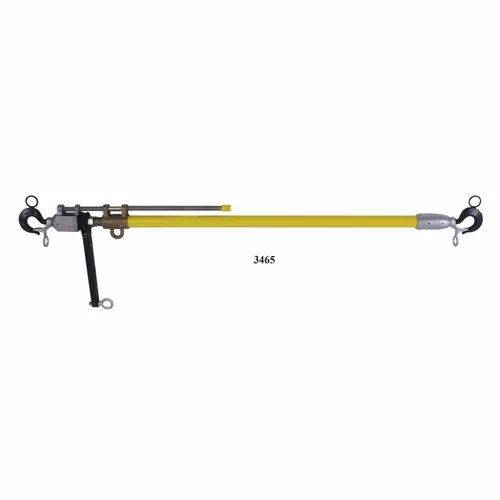

HASTINGS 3465 46/69KV Conductor Tensioning ToolHASTINGS 3465 46/69KV Conductor Tensioning ToolHASTINGS 3465 46/69KV Conductor Tensioning Tool- Model Tensioning Tool :46/69KV- Working Range :69 inches to 81 inches- Maximum Take Up :12 inches- Insulation Min. / Max. :38 inches to 48 inches- Length Stored :71 inches- Length Extended:83 inches Weight12.5 lbs.CONDUCTOR TENSION TOOL- The conductor tension tool is excellent for both hot stick and rubber gloving applications- Used for temporarily isolating sections of lines, changing out dead end insulators and line splicing- Load limit 4,000 lbs.- Installed and operated using hot sticks- Two models available, 5KV to 35KVOR46KV to 69KV- Conductor hooks have hot stick eyes and hot stick operable safety latches. Hooks are stationary.- Metal components are heat treated aluminum alloy or bronze alloy
