Product Description

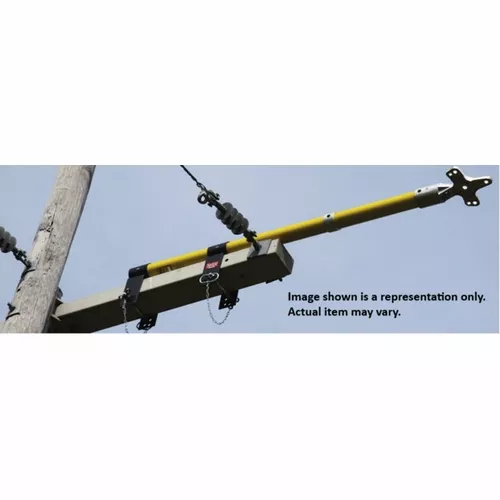

HASTINGS 7676Dead-End Arm with Cluster – 3 Way BracketHASTINGS 7676Dead-End Arm with Cluster – 3 Way BracketHASTINGS 7676Dead-End Arm with Cluster – 3 Way BracketSPECIFICATIONS-Arm with 3 Way Bracket- Height Adjustment4-5/8″, 4-7/8″, 5-7/8″, 6-1/8″- WidthAdjustment6-1/8″, 7-1/4″, 8-3/8″- Weight34.5 lbs.TEMPORARY DEAD END ARMThe Temporary Dead End Arm enables a line crew to spread conductors off an existing dead end arm to gain working clearance to replace and terminate new conductors.FEATURES AND BENEFITS:- Arms are constructed with 3″ diameter fiberglass and a foam core to meet most load requirements for temporary dead ends.- Load limit – 500 lbs. per position or 1,000 lbs. total load limit.- Arms have two holes with 18″ spacing to accommodate 5/8″ diameter hardware bolts for dead ends. Two aluminum sleeves are installed to prevent wear on the fiberglass arm.- Steel mounting brackets have multiple holes for adjustment to fit various arm sizes. Note: adjustment range is described for all catalog numbers shown below.- Arms can be installed on either the top or bottom of existing cross arms.- Two styles are available. Butt swivel eye to dead end a single phase tap line or a 3 way aluminum alloy equipment mounting bracket for mounting a cutout, lighting arrester and a dead end tap line.- When utilizing the butt swivel or the equipment mounting bracket for temporary hanging of a tap line;only slack spans are recommended with loads not to exceed 150 lbs., providing that the Dead End Arm is being held captive on the crossarm.
