Product Description

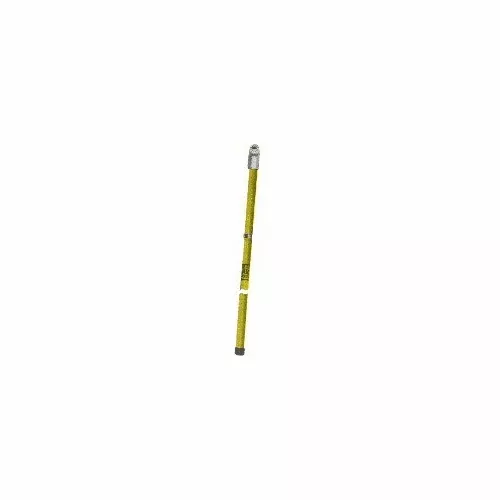

HASTINGS H-10 9 1/2 ft. SubstationAdjustable Length Disconnect Universal StickHASTINGS H-10 9 1/2 ft. SubstationAdjustable Length Disconnect Universal StickHASTINGS H-10 9 1/2 ft. SubstationAdjustable Length Disconnect Universal StickDesigned for use in close confines of substationsFEATURES AND BENEFITS:- Round Stick with HASTINGS Square Button design prevents button shearingunder heavy load- Eliminates problem of threading long sticks through substation structure- Eliminates multiple length stick requirements, sticks are adjustable to length in one foot increments- Top section is conventional 1-1/4″ diameter Hot Stick. Can be removed for use as single one piece Hot Stick. Base section is 1-1/2″ diameter.- Extended length is shown at each lock position for reference- Safe guard design, top section must extend beyond base before lock will engage, giving full protection of fire retardant unicellular core (See information on collapsed and minimum usable length)- Available with standard disconnect head, switch head, or universal head- Tested per OSHA and ASTM F-711.SPECIFICATIONS:- Universal Head- Extended Length :9 ft.6 inches- Minimum Usable Length : 5 ft. 4 inches – Collapsed Length :5 ft.- Weight :4.2lbs
