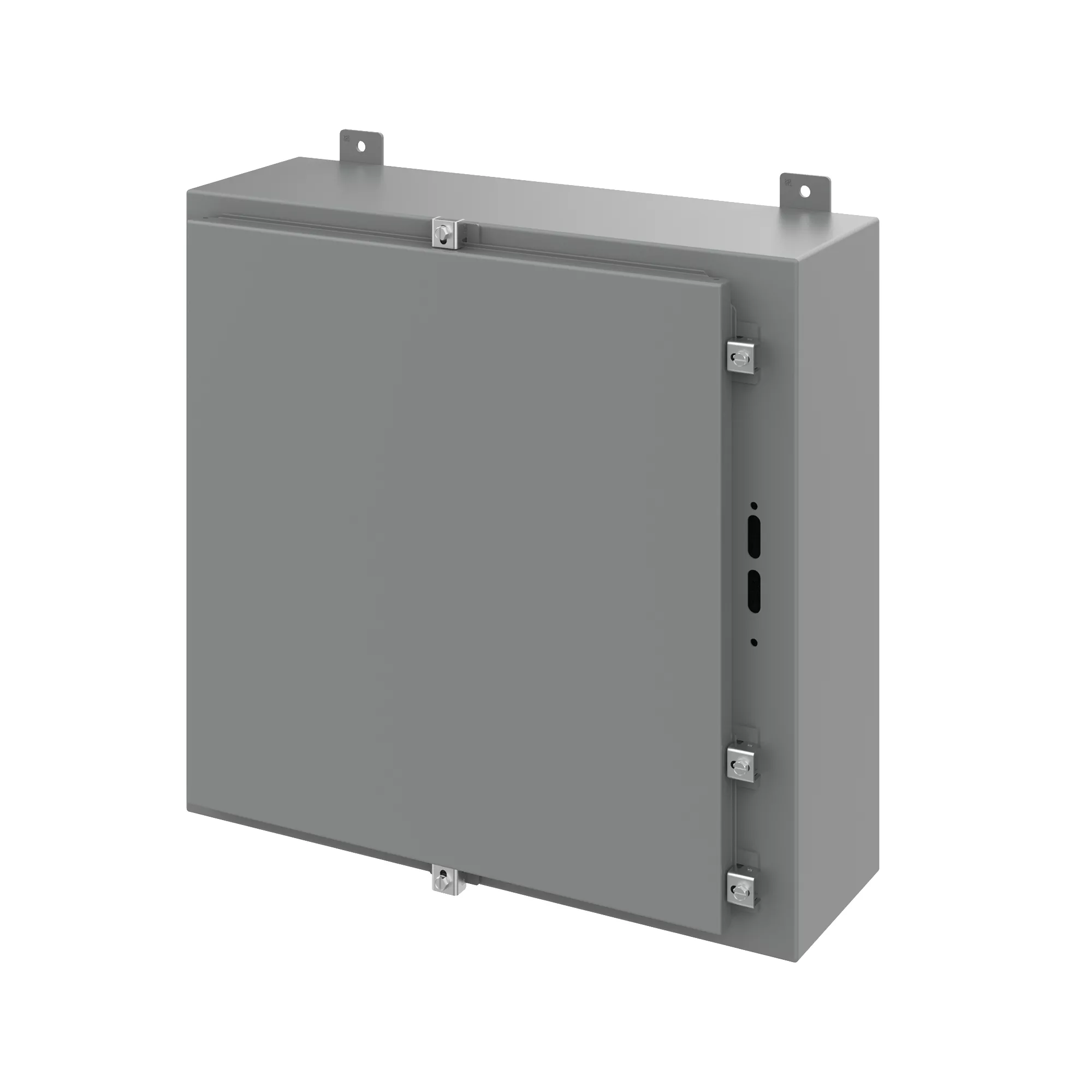

Disconnect Enclosures provide extra level of visual ON/OFF indication clamped for additional security. This Disconnect Enclosure with Clamps Type 4, A24HS2508LP item measures 24.00x25x8.00 inches with a material of Steel colored Gray.
Seams continuously welded and ground smooth
External mounting brackets
External-formed flange around all sides of enclosure opening
Stainless steel door clamps on three sides of door
Removable door with continuous hinge
Type 4 rated door gasket
Collar studs for mounting optional panels
Holes in body for mounting disconnect operating handle and operating mechanism
Bonding provision on door
Adjustable door interlock bracket fastened to door) and instructions for installing disconnects
Specifications
Brand Name
Hoffman
Sub Brand
Hoffman
Type
Type 4 Mild Steel Freestanding Enclosure
Width
25.38 in
Depth
8 in
Height
24 in
NEMA Rating
4 Watertight
Material
Mild Steel
Finish
Powder Coated
Color
Gray
Standards
UL 508A Listed, Type 4, 12, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 4, 12, File No. E61997, NEMA/EEMAC Type 3, 4, 12, 13, CSA File No. 42186: Type 4, 12, IEC 60529, IP66
Application
Arc Flash Safety; Controls and Drives; Power Distribution
UPC
783510201203
