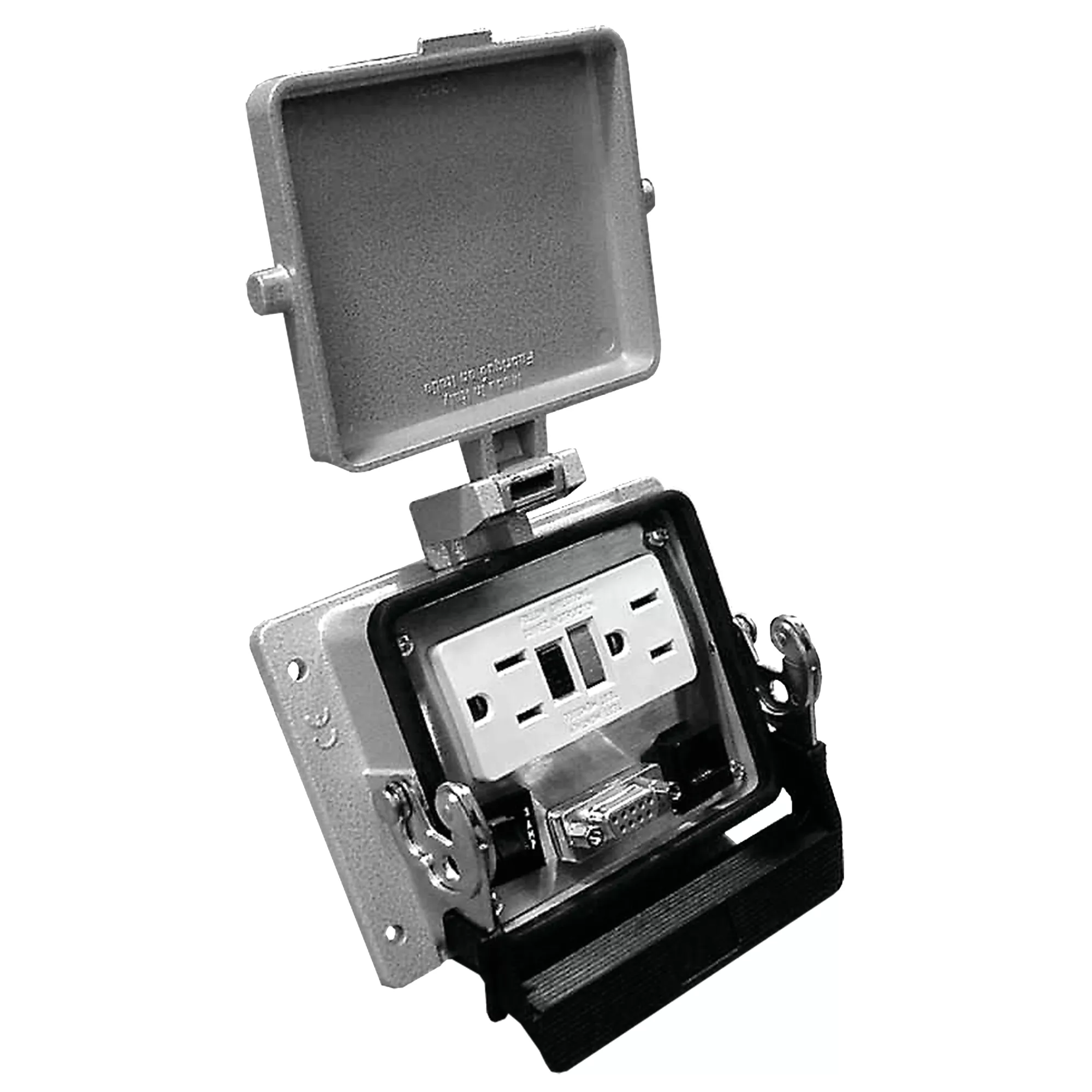

Panel interface connector provides a connection for a PLC or computer housed inside an enclosure without opening the enclosure door. It mounts on the outside of the enclosure. The HBE size 32 housing and hinged cover are die cast aluminium. The closed assembly is rated UL type 4. It enclosures a duplex receptacle. A 9-pin D-sub pass-through connector. An RJ45 pass-through connector. A covered terminal block with screw connections for the internal power connection.
The panel interface connector enclosure includes:
A duplex receptacle
A 9-pin D-sub pass-through connector
An RJ 45 pass-through connector
A 3-amp reset
A covered terminal block with screw connections for the internal power connection
Specifications
Brand Name
Hoffman
Sub Brand
Hoffman
Type
Electrical Accessories
Material
Aluminum
Finish
Powder Coat
Color
Gray
Standards
UL 508A Component Recognized, File No. E61997
Application
For Arc Flash Safety, Controls and Drives
UPC
783510135737
