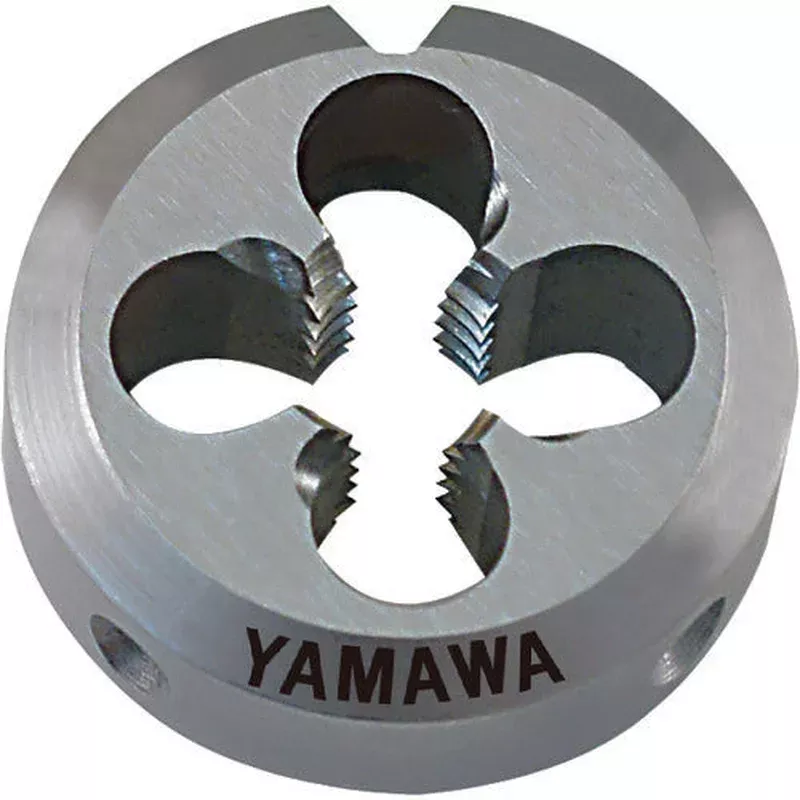

Features Due to the effect of the point groove, chips are pushed out to the front of the die, reducing trouble caused by chips.
Use For male thread processing.
Specification Nominal size: M6Pitch (mm): 1Outer diameter (mm): 25Thickness (mm): 9Processing thread: Metric thread
Specification2 Accuracy: S2 Number of chip holes: 4 Number of biting threads: 1.5 Surface treatment: Non-coating
Material/Finish High speed tool steel (HSS)
Set contents/accessories
caution
