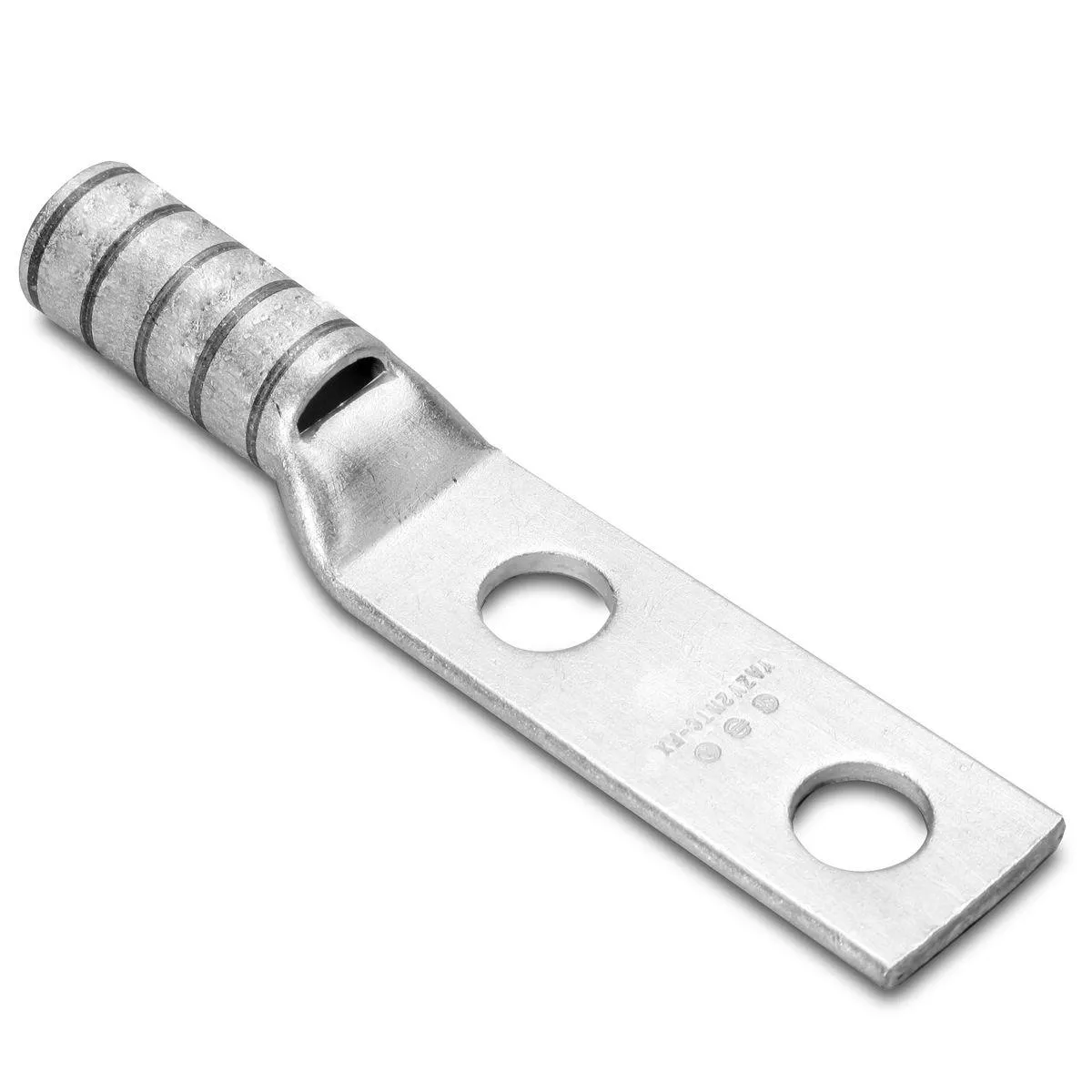

Copper Compression Lug, 2 Hole w/ Inspection Window, 2 Flex, 1/2″ Stud, 1-3/4″ Stud Hole Spacing, Short Barrel, Tin Plated.
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Connectors are clearly marked with stamping and barrel color coding
For applications greater than 2000 Volts consult cable manufacturer for voltage stress relief instructions
Specifications
Brand Name
Burndy
Sub Brand
Hylug™
Item Name
Compression Lug with Inspection Window
Type
Standard Barrel, Tin Plated
Conductor Size
2 AWG
Number of Holes
2
Stud Size
1/2 in
Overall Length
4.07 in
Color Code
Brown
Material
Copper
Voltage Rating
35000 V
Barrel Type
Standard, Short
Stud Hole Spacing
1-3/4 in
Finish
Tin-Plated
Mounting Type
14 mm Hole
Standards
CSA Certified, UL Listed, RoHS Compliant
Application
For Flex Conductors
UPC
781810044582
