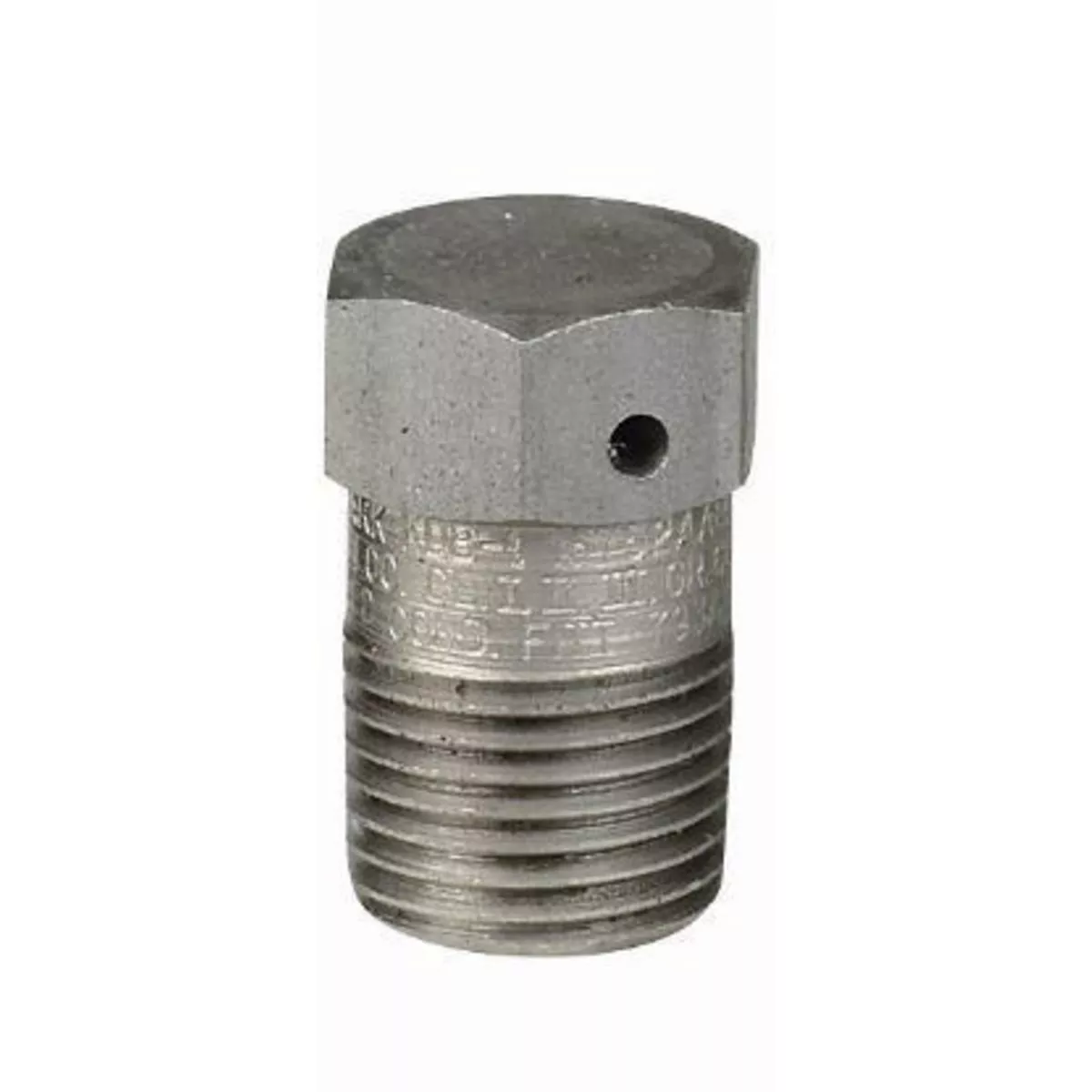

Drain/breather, when installed in the top of an enclosure, these fittings act as breathers which allows air flow through the enclosure . Bottom installations permit water from condensation to drain from the enclosure continuously.
Suitable for Explosionproof and Dust-Ignitionproof environments.
Stainless Steel
Specifications
Brand Name
Killark
Sub Brand
Killark
Item Name
Breather Drain
Type
Non-Reversing
Connection
1/2 in NPT
Material
303 Stainless Steel
Dimension
2 in L x 1 in W x 1 in H
Color
Gray
NEMA Rating
3/4/4X
Standards
UL E10514, cCSAus, FM Approved, Class I, Divisions 1 & 2, Groups B, C, D, Class I, Zones 1 & 2, Groups IIB+H2, IIA, Class II, Divisions 1 & 2, Groups E, F, G, Class III, Divisions 1 & 2
Application
When Installed in the Top of an Enclosure, these Fittings Act as Breathers which Allows Air Flow Through the Enclosure, Bottom Installations Permit Water from Condensation to Drain from the Enclosure Continuously
UPC
783936367002
Packages
