Features: UL Listed 90 DEG C, 600 V – 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Die Index: 12, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Wire Strip Length: 11/16 IN, Color Code: Pink, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W25VT, W25RT, X25RT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W25VT, W25RT, X25RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U25RT Die, (1), Y46 Tool, U25RT Die With PUADP-1 Adapter, (1), Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (1), Conductor Type: Commercial Stranded Copper, Flexible Copper
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements

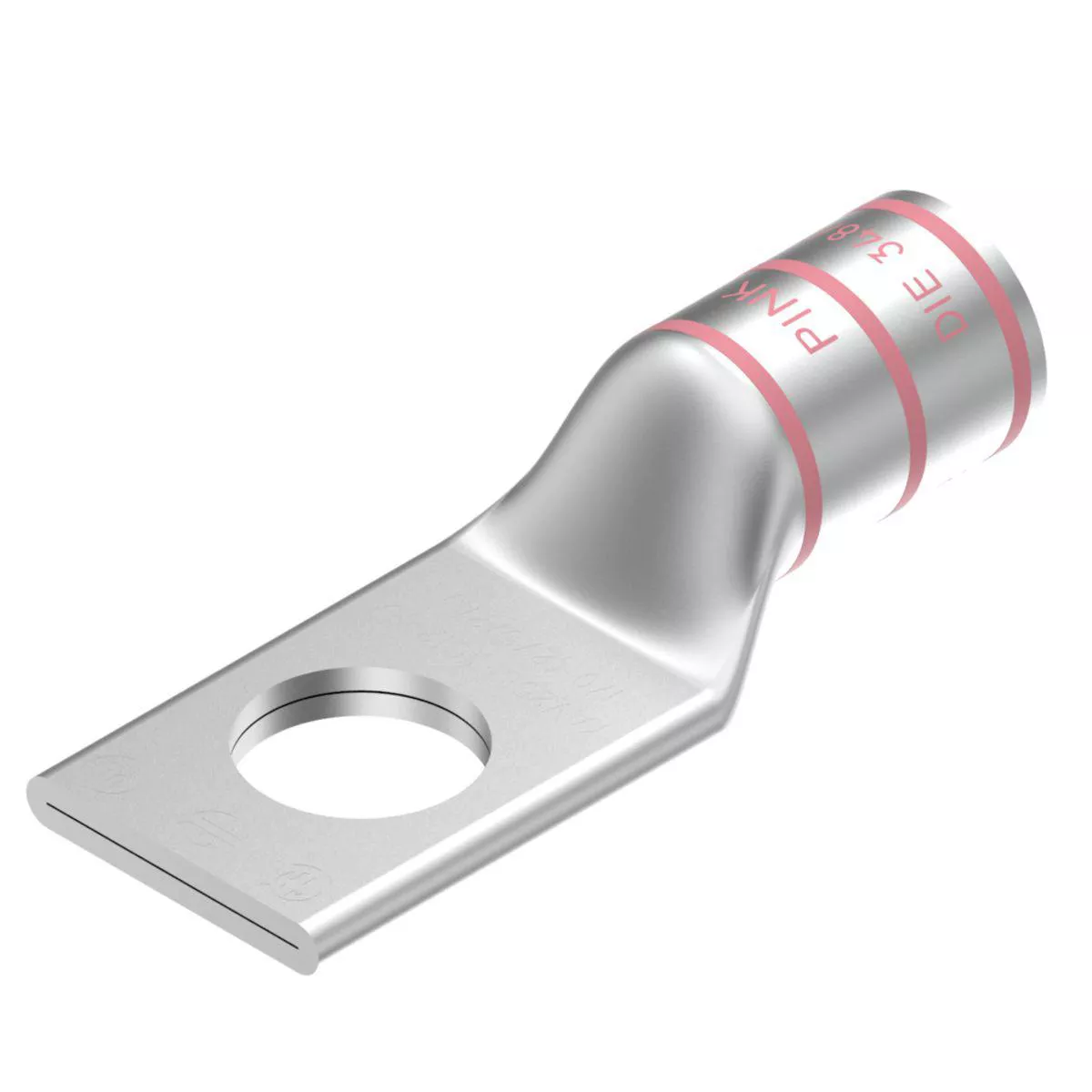

Connectors are clearly marked with stamping and barrel color coding
For applications greater than 2000 Volts consult cable manufacturer for voltage stress relief instructions
Specifications
Brand Name
Burndy
Sub Brand
Hylug™
Item Name
Compression Lug
Type
Standard Barrel
Conductor Size
1/0 AWG, 1/0 AWG Weld, 275/24
Number of Holes
1
Stud Size
0.25 in
Overall Length
1.75 in
Material
Copper
Voltage Rating
35000 V
Finish
Tin-Plated
Standards
UL Listed At 90 °C, 600 V – 35 kV, CSA Certified, RoHS Compliant
Application
For Flex Conductor
UPC
781810022702
