Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Minimal turn radius for optimal spacing of both enclosures and conduit
Large openings for ease of access to conductors for proper dam installation
Engineered to latest 419 hub specifications for superior continuity and ingress protection
Integral bushings to protect conductors during installation
Specifications
Brand Name
Killark
Sub Brand
Killark

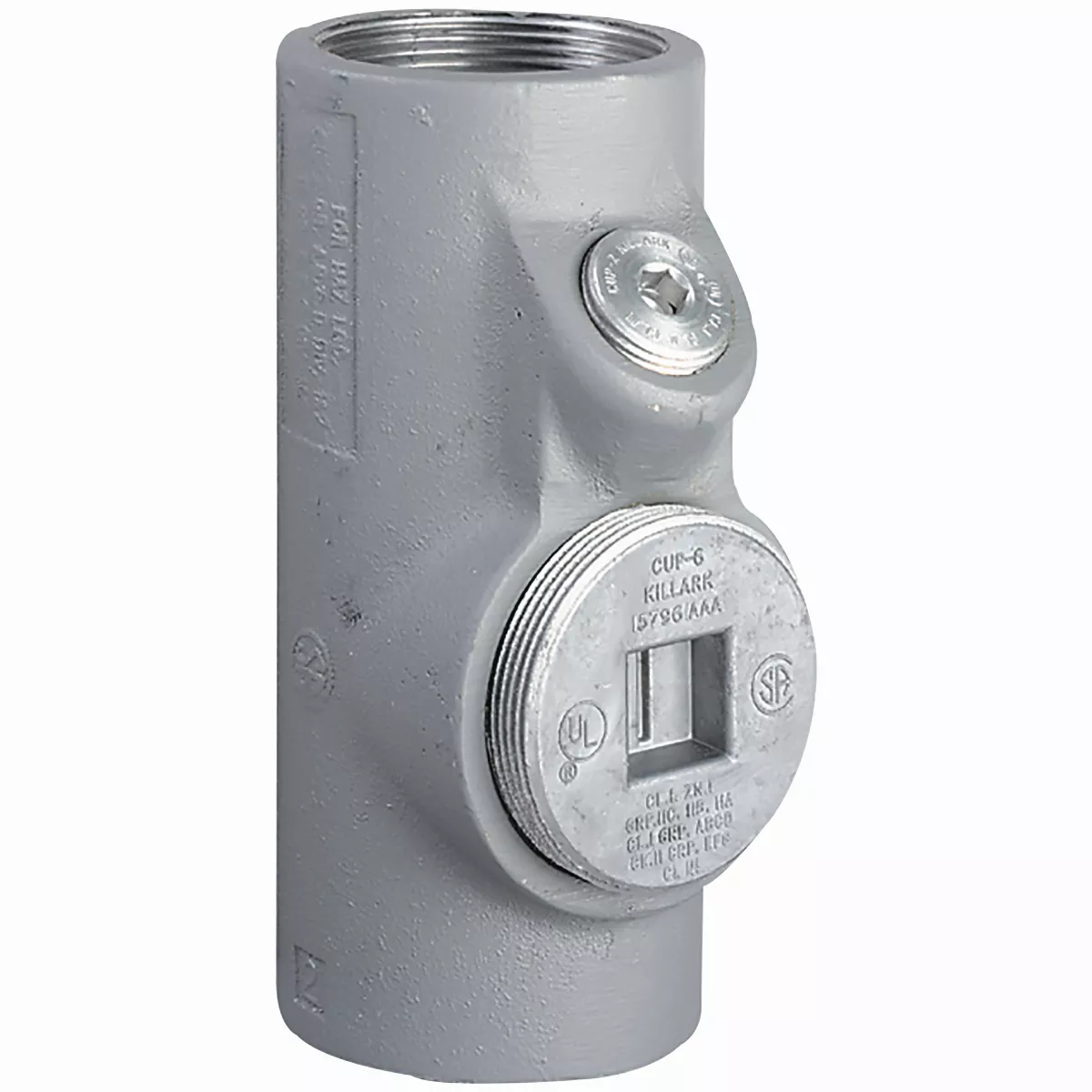

Item Name
Sealing Fitting
Type
Female and Female
Trade Size
1 in
Material
Copper-Free Aluminum
Finish
Powder-Coated
Series/Model
ENY Series
Color
Gray
Dimensions
2-37/64 in L x 2-11/32 in W x 4-25/32 in H
Standards
CSA Certified, UL Listed
Application
Class I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
UPC
783936111124
