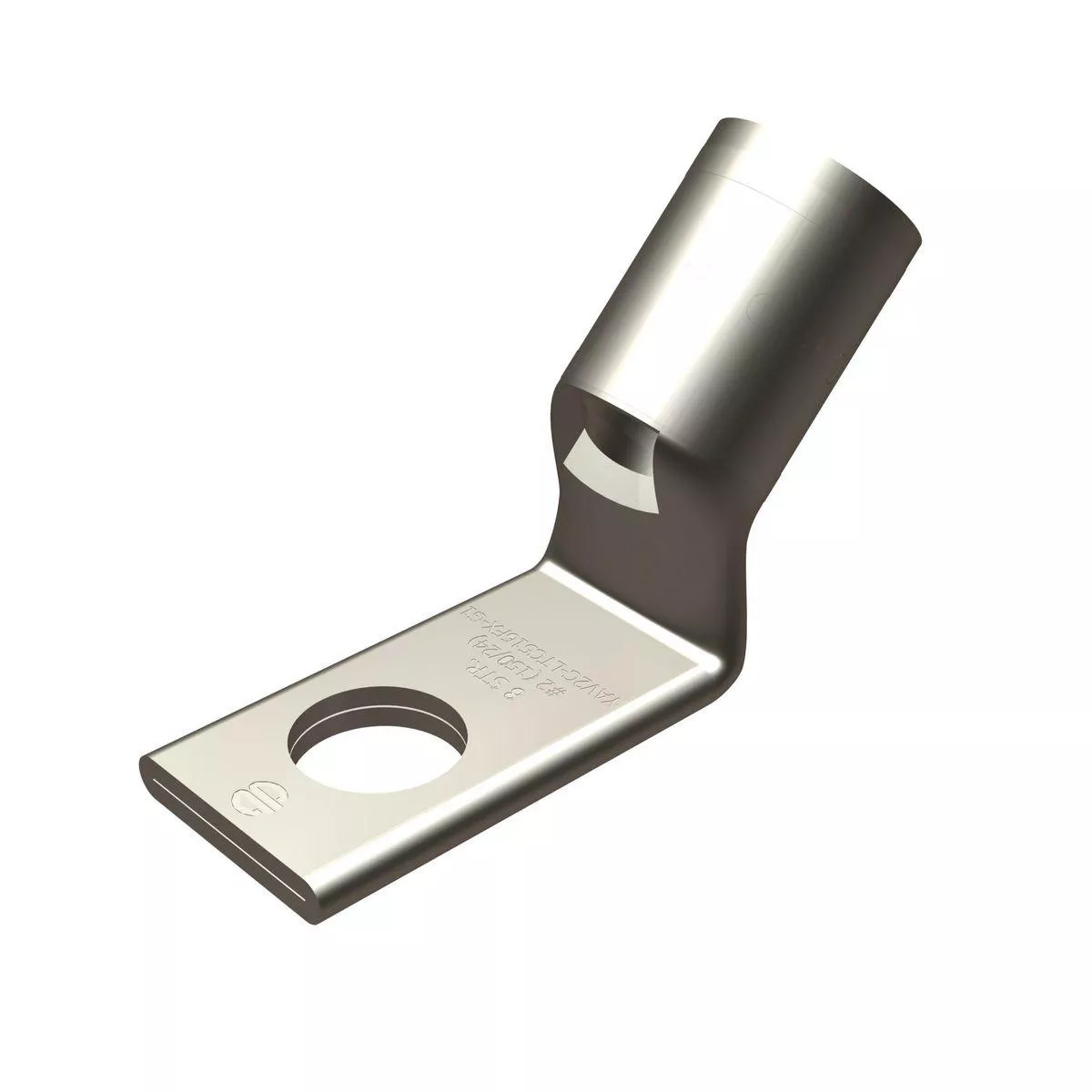

Cu Tubing Hylug, 1 Hole with Inspection Window, 2 WELD, 3(125/24)-2(150/24) DLO, 2 AWG Code, 60 Navy, 600V-35kV, 3/8″ stud, Compression, 0.40 in BCD.
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Connectors are clearly marked with stamping and barrel color coding
For applications greater than 2000 Volts consult cable manufacturer for voltage stress relief instructions
Specifications
Brand Name
Burndy
Sub Brand
Hylug™
Type
Standard Barrel, Tin Plated
Conductor Size
2 AWG
Overall Length
1.77 in
Material
Copper
Voltage Rating
35,000 V
Finish
Tin-Plated
Standards
UL Listed, CSA Certified, RoHS Compatible
Application
For Flex Conductor
UPC
781810022450
