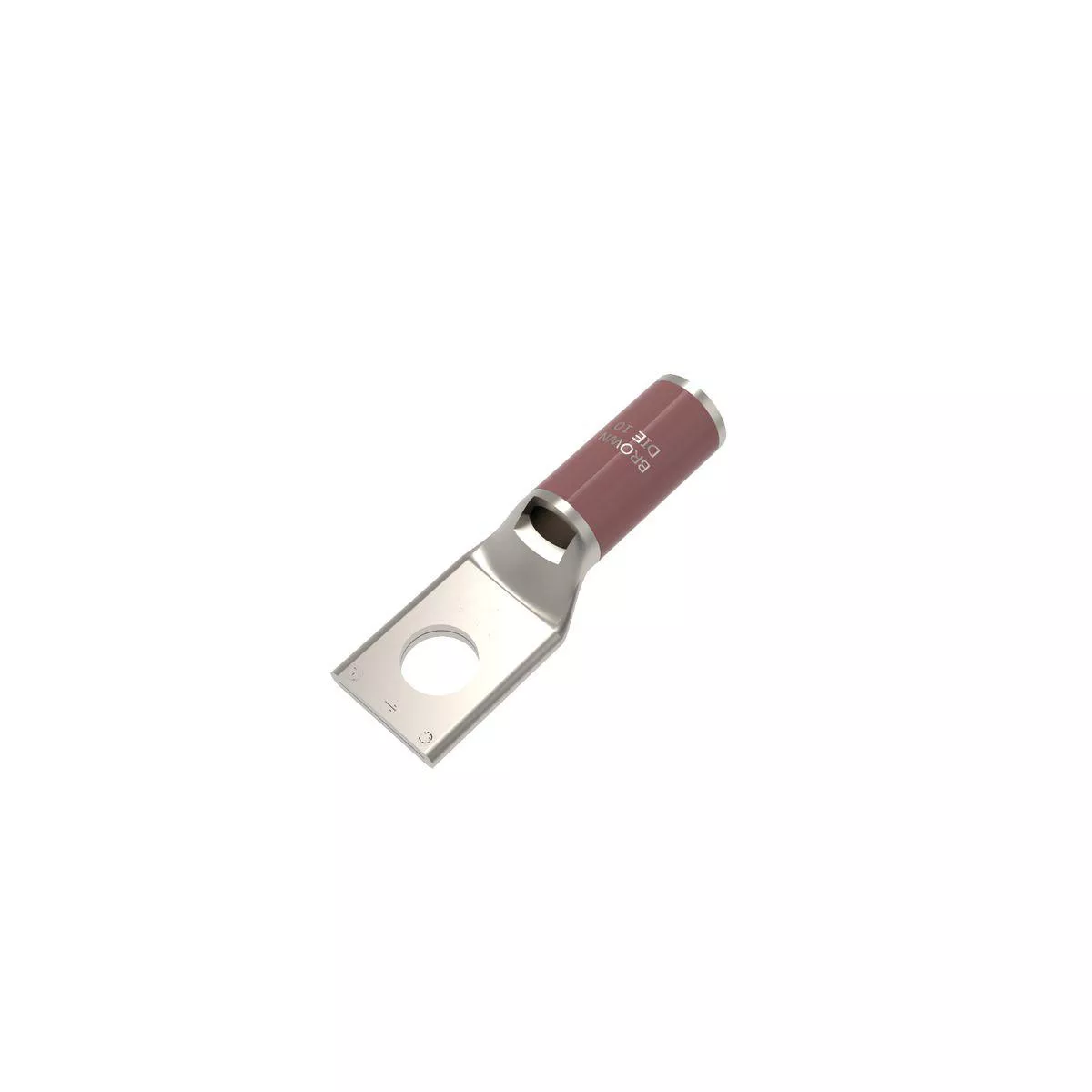

Copper Compression lug, 1 Hole w/ Inspection Window, 2 AWG, 1/4″ Stud, Short Barrel, Tin Plated.
Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
Standard barrel length is recommended for installations with limited space availability
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Connectors are clearly marked with stamping and barrel color coding
Specifications
Brand Name
Burndy
Sub Brand
Hylug™
Item Name
Compression Lug with Inspection Window
Type
Standard Barrel, Tin Plated
Conductor Size
2 AWG
Number of Holes
1
Stud Size
1/4 in
Overall Length
1.88 in
Color Code
Brown
Material
Copper
Voltage Rating
35000 V
Barrel Type
Standard, Short
Die Code
10
Strip Length
15/16 in
Finish
Tin-Plated
Mounting Type
7 mm Hole
Temperature Rating
90 °C
Standards
CSA Certified, UL Listed, RoHS Compliant
Application
For Code Conductor
UPC
781810551752
