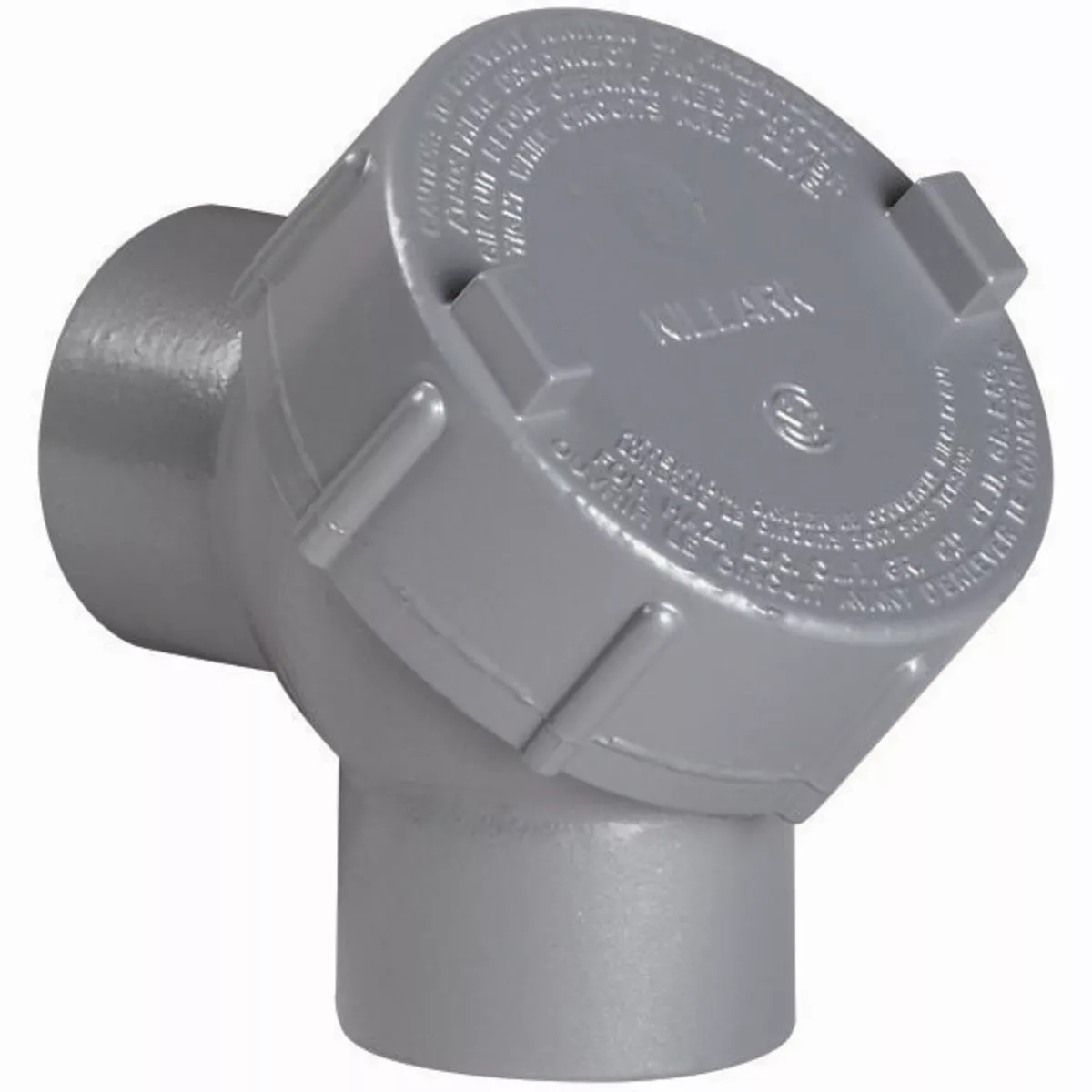

Threaded for rigid conduit or IMC. Smooth integral bushings to prevent damage to wires.
Threaded for rigid conduit or IMC
Smooth integral bushings to prevent damage to wires
Specifications
Brand Name
Killark
Sub Brand
Killark
Item Name
Capped Elbow
Connection Size
3/4 in
Connection Type
Threaded
Material
Copperfree Aluminum
Color
Gray
Finish
Powder Epoxy Paint
Type
90°
Series/Model
Y
Dimensions
3-3/4 in H x 3-1/16 in W x 3-1/16 in D
For Use With
Rigid/IMC Conduit
Standards
UL E10514, CSA LR11716, FM Approved, Class I, Divisions 1 and 2, Groups C, D, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Divisions 1 and 2
Application
To change direction 90° in rigid or IMC conduit systems where space is limited and access is needed for pulling conductors or maintenance.
UPC
783936970028
