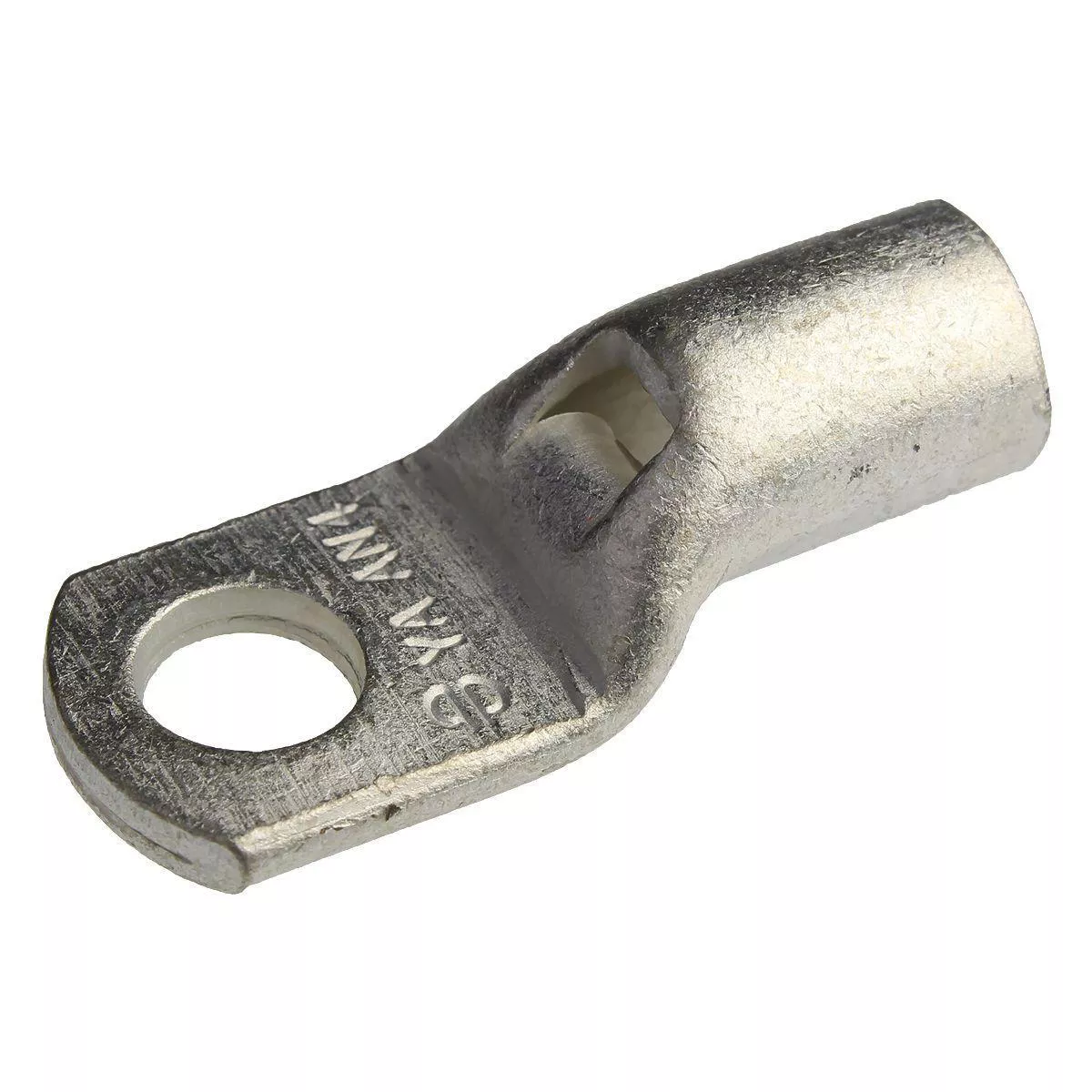

Copper Compression Lug, Ring Tongue, 1 Hole w/ Inspection Hole, AN-4 Flex, 1/4″ Stud, Short Barrel, Electro-Tin Plated.
Manufactured from seamless pure electrolytic copper tubing to provide maximum conductivity, low resistance and excellent ductility for crimping
Seamless tubular crimp barrel design – No seams to split resulting in a very high quality electrical connection, also can be used on solid conductor
Double thick tongue structurally a very strong terminal tongue
Produced from tubular copper, extra copper material assures the compression connector will operate cooler than the conductors it connects
Internally bevelled barrel for easy cable entry, especially for flexible conductors
Inspection hole provides easy visual check for proper conductor insertion
Electro-tin plated for a long lasting durable corrosion resistance
Specifications
Brand Name
Burndy
Sub Brand
Hylug™
Item Name
Compression Lug
Type
Heavy-Duty, Uninsulated
Conductor Size
4 AWG Flexible
Number of Holes
1
Stud Size
1/4 in
Overall Length
1.37 in
Material
Copper
Barrel Type
Short
Tongue Type
Ring
Finish
Electro Tin-Plated
Standards
UL 467 Listed, Military Specified
Application
For Use on Type AN Aircraft Cable, Extra Flexible Conductors and Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers
UPC
781810807194
