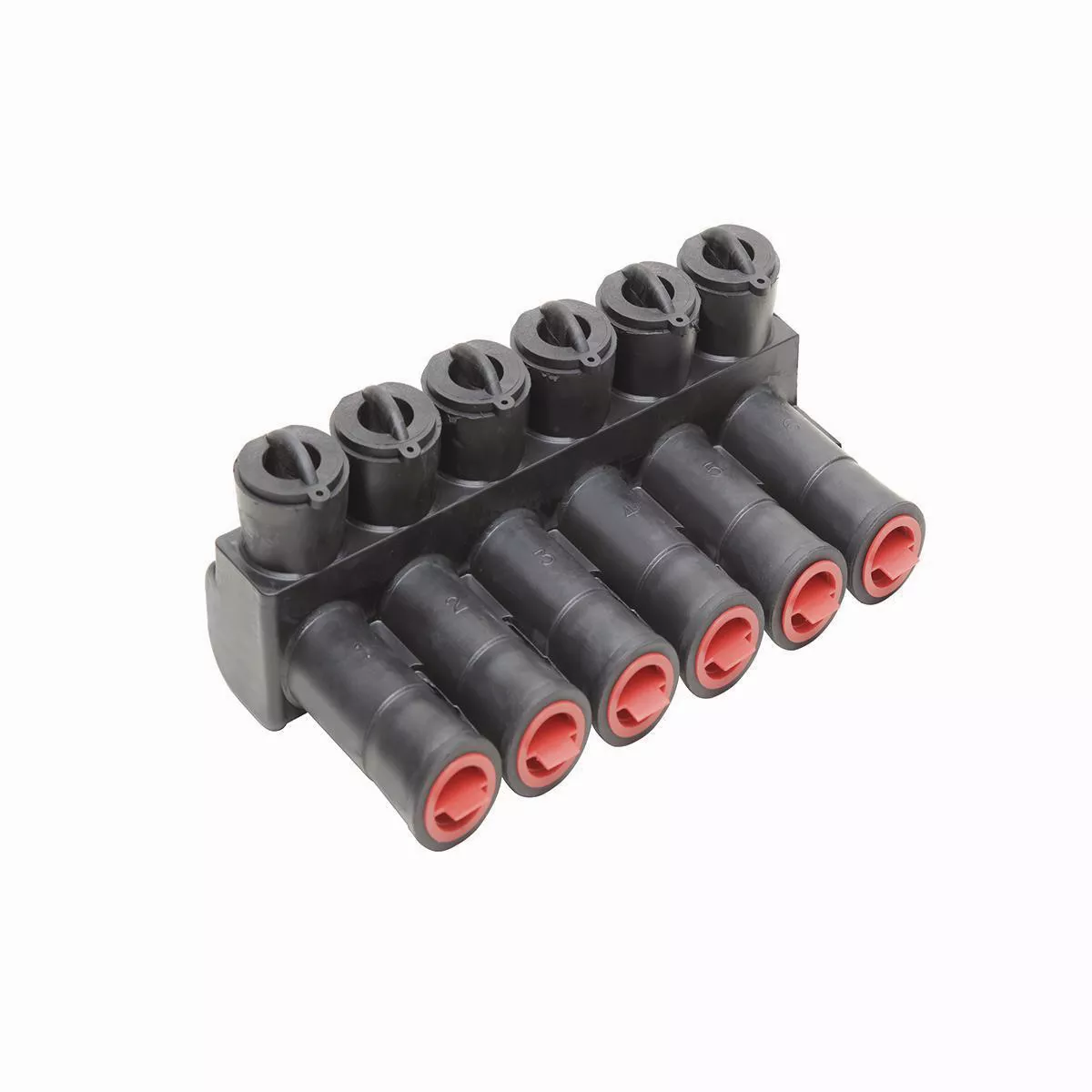

Submersible, Direct Burial, Dual Rated Al/Cu, 6 Conductor, Single Sided, 12 AWG-350 kcmil, EPDM Rubber Covering. Supplied with oxide inhibitor pre-installed.
Dual rated for aluminum or copper conductors
Each unit individually marked for ease of identification
Supplied with aluminum set-screws
Supplied with oxide inhibitor pre-installed
Submersible rated and suitable for Direct Burial
Specifications
Brand Name
Burndy
Sub Brand
Unitap™
Item Name
Multi-Tap Connector
Type
1-Sided Entry, Multi-Port
Number of Ports
6
Conductor Size
50 kcmil, 4/0 AWG, 2/0 AWG, 3/0 AWG, 2 AWG, 1 AWG, 4 AWG, 1/0 AWG, 350 kcmil, 8 AWG, 12 AWG, 10 AWG, 6 AWG Run
Material
Aluminum
Color/Finish
Unplated
Connection Type
Multi Tap
Dimensions
7.45 in L
Temperature Rating
194 °C
Standards
CSA Certified, RoHS Compliant, UL Listed
Application
For Outside Direct Burial
UPC
781810523629
