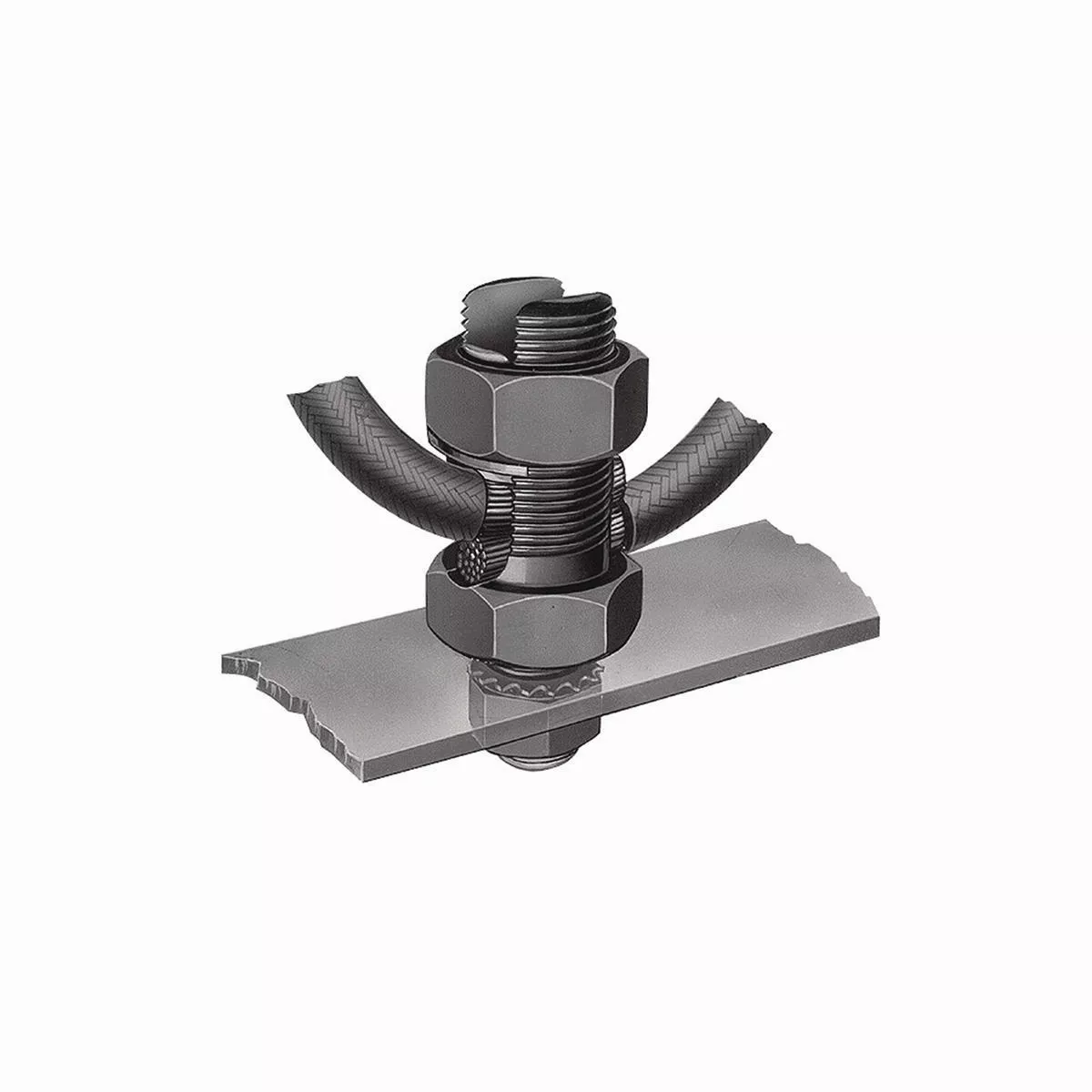

Mechanical Grounding Connector, 2 Cables to Flat, 1 AWG – 350 kcmil (Str).
SERVIT POST™ mechanical connector used to ground 1 or 2 cables to steel structures, fence posts, and transformers
Also used to tap 1 or 2 cables from bus bar
1-Wrench installation
Specifications
Brand Name
Burndy
Sub Brand
Servit Post™
Item Name
Mechanical Ground Connector
Type
KC and K2C Series
Conductor Size
1 AWG – 350 kcmil Stranded
Stud Size
5/8-11
Hex Nut Size
1.69 in W
Material
Copper Alloy
Finish
Unplated
Size
3.69 in L x 1.43 in W x 2.19 in H
Series/Model
K2C
Standards
UL 467, RoHS Compliant
Application
For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial
UPC
781810257654
Packages
