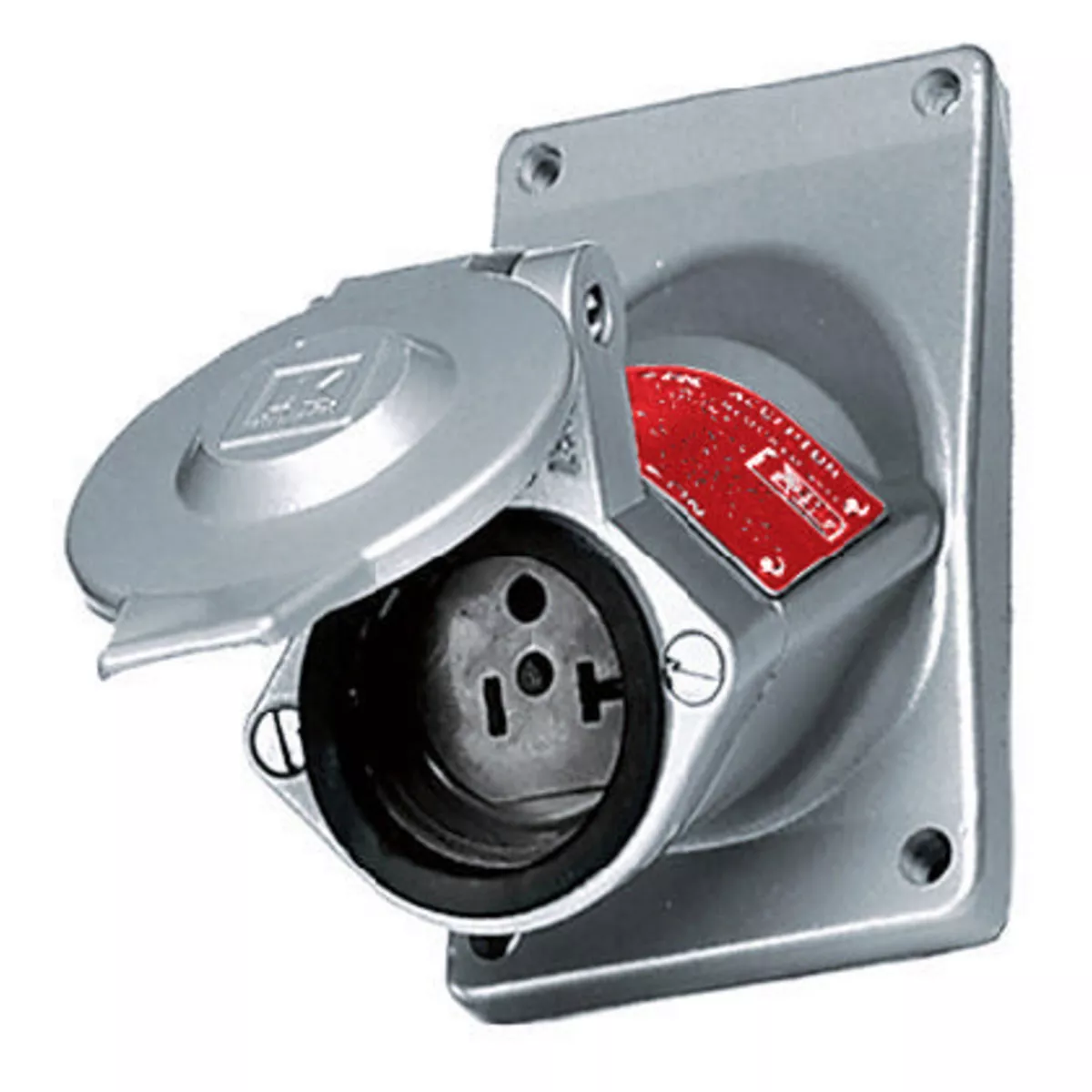

HUBBELL UGRO-20231 20Amp 125V ACCEPTOR Explosion Proof Series Receptacle,2 Pole, 3 Wire

Name: HUBBELL UGRO-20231 20Amp 125V ACCEPTOR Explosion Proof Series Receptacle,2 Pole, 3 Wire
Brand: topsolidhardwaredepot.com
SKU: kilugro20231
Price: 165.97 USD
Availability: InStock

Original price was: $293.74.Current price is: $165.97.

Sale!

SKU: kilugro20231 Category: hot sale

Description

All external hardware is 316 stainless steel to provide low maintenance and long life. Factory sealed chamber in UGR receptacle contains switch s arcing components. No additional external seals are required, except in Group B applications. Receptacles are

Explosion Proof

Receptacle with Adapter

20A 125V

5-20R

Specifications

Brand Name	Hubbell Wiring Device Kellems	Sub Brand	Straight Blade
Item Name	Explosion Proof Receptacle	Type	Hazardous Location, Single, Straight
Size	6″ H x 3″ W x 4-3/16″ D	Voltage Rating	125 V
Amperage Rating	20 A	Wattage	2500 W
Number of Poles	2	Number of Wires	3
NEMA Configuration	5-20R	NEMA Rating	NEMA 3, 7BCD, 9FG
Conductor Size	14-12 AWG	Material	Thermoplastic
Color	Gray	Phase	1
Terminal Connection	Screw	Dielectric Strength	Withstands 2,000V minimum
Mounting Type	Screw	Environmental Conditions	Indoor Dry Unless Protected by Additional Means
Standards	UL 498	Application	Extra Heavy Duty
UPC	783585412504
