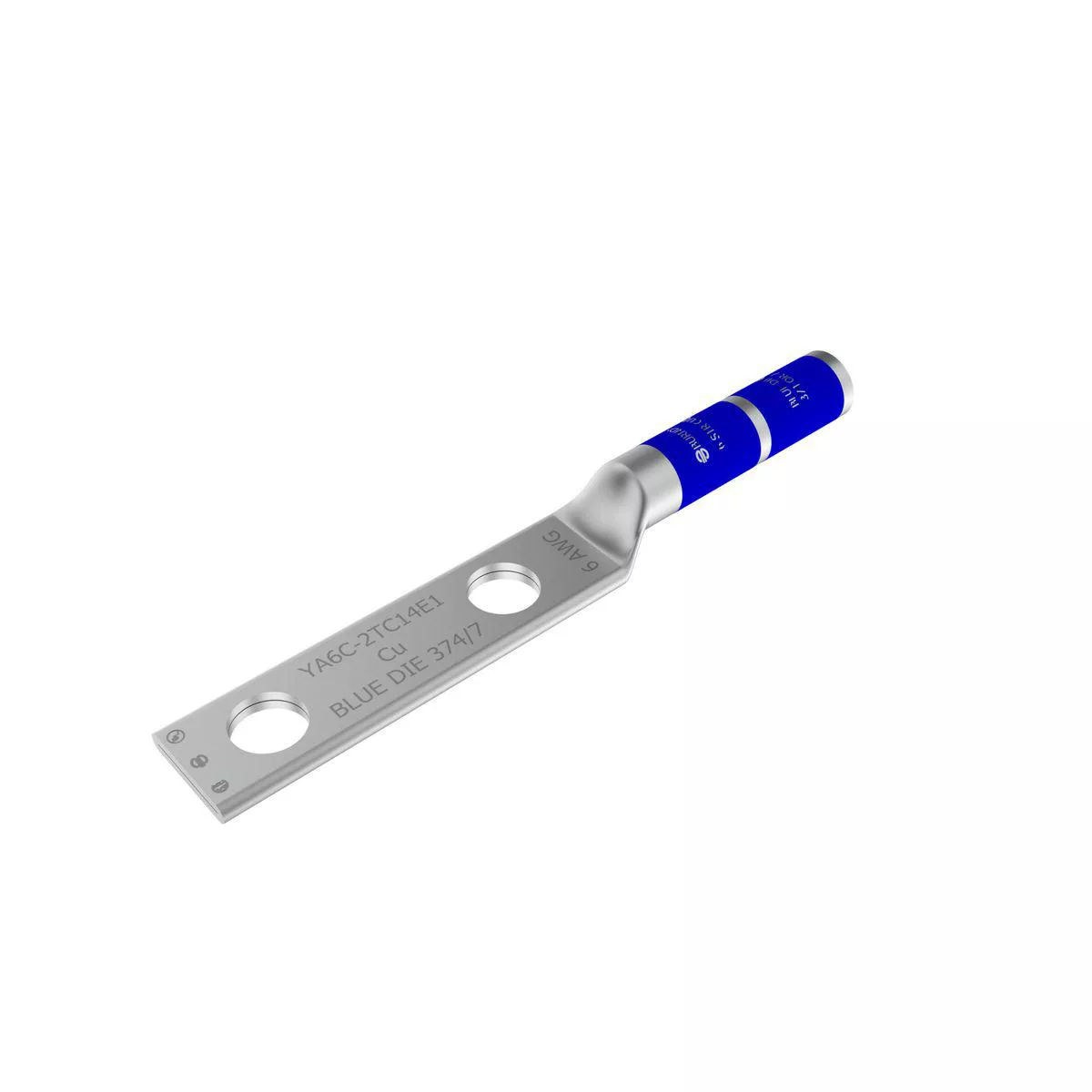

Copper Compression Lug, 2 Hole w/o Inspection Window, 6 AWG, 1/2″ Stud, 1-3/4″ Stud Hole Spacing, Long Barrel, Tin Plated.
Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Connectors are clearly marked with stamping and barrel color coding
2-Hole design prevents rotation
Specifications
Brand Name
Burndy
Sub Brand
Hylug™
Type
YA-2N
Conductor Size
6 AWG
Number of Holes
2
Stud Size
0.5 in
Material
Copper
Voltage Rating
35,000 V
Finish
Tin-Plated
Standards
UL 486A-486B
Application
For Flex Conductor
UPC
781810501818
