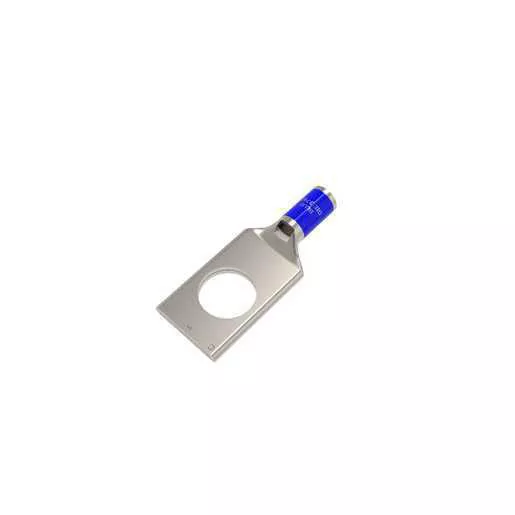

Copper Compression Lug, 1 Hole w/ Inspection Window, 6 AWG, 1/2″ Stud, Short Barrel, Tin Plated.
Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
Standard barrel length is recommended for installations with limited space availability
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Connectors are clearly marked with stamping and barrel color coding
Specifications
Brand Name
Burndy
Sub Brand
Hylug™
Item Name
Compression Lug with Inspection Window
Type
Non-Insulated
Conductor Size
6 AWG Stranded Copper
Number of Holes
1
Stud Size
1/2 in
Barrel Diameter
0.29 in
Barrel Length
0.54 in
Tongue Size
1.08 in L x 3/4 in W x 0.12 in T
Overall Length
1.87 in
Color Code
Blue
Material
Copper
Voltage Rating
600 – 35000 V
Barrel Type
Standard, Short Chamfered/Skived
Tongue Type
Standard, Straight
Die Code
7
Strip Length
9/16 in
Finish
Electro Tin Plated
Temperature Rating
90 °C
For Use With
Aluminum and Copper Conductors
Standards
UL 467 Listed, CSA Certified, RoHS Compliant
Application
For Aluminum & Copper Conductors
UPC
781810018965
