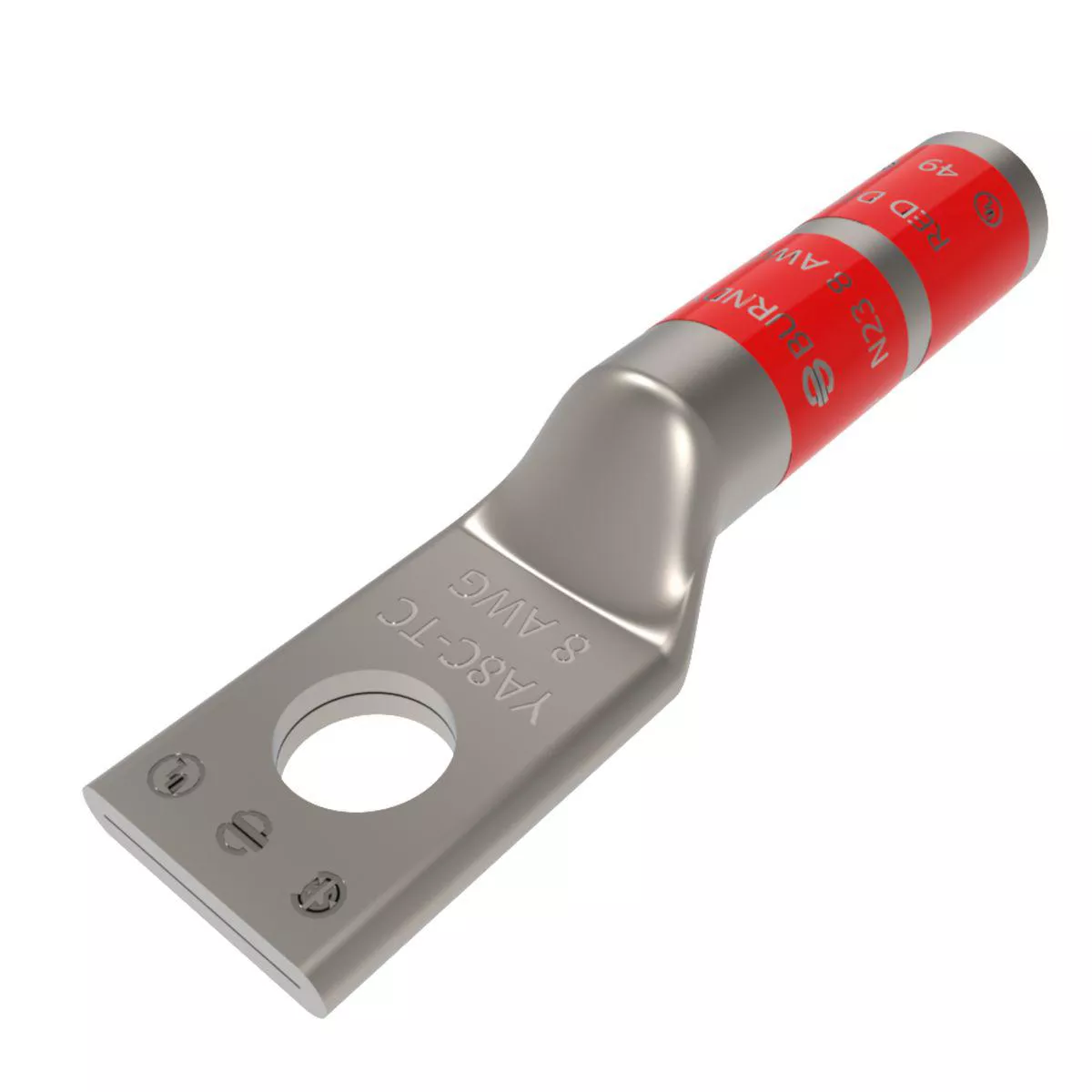

Copper Compression Lug, 1 Hole w/o Inspection Window, 8 AWG, 1/4″ Stud, Long Barrel, Tin Plated.
Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Connectors are clearly marked with stamping and barrel color
Specifications
Brand Name
Burndy
Sub Brand
Hylug™
Item Name
Compression Lug without Inspection Window
Type
Non-Insulated
Conductor Size
6 AWG Solid Copper, 8 AWG Stranded Copper
Number of Holes
1
Stud Size
1/4 in
Barrel Diameter
0.27 in
Barrel Length
0.81 in
Tongue Size
0.64 in L x 0.44 in W x 0.08 in T
Overall Length
1.69 in
Color Code
Red
Material
Copper
Voltage Rating
600 – 35000 V
Barrel Type
Long, Chamfered
Tongue Type
Standard, Straight
Die Code
49
Strip Length
1-3/16 in
Finish
Electro Tin Plated
Temperature Rating
90 °C
For Use With
Code Conductor
Standards
UL 467 Listed, CSA Certified, RoHS Compliant
Application
For Code Conductor
UPC
781810502402
