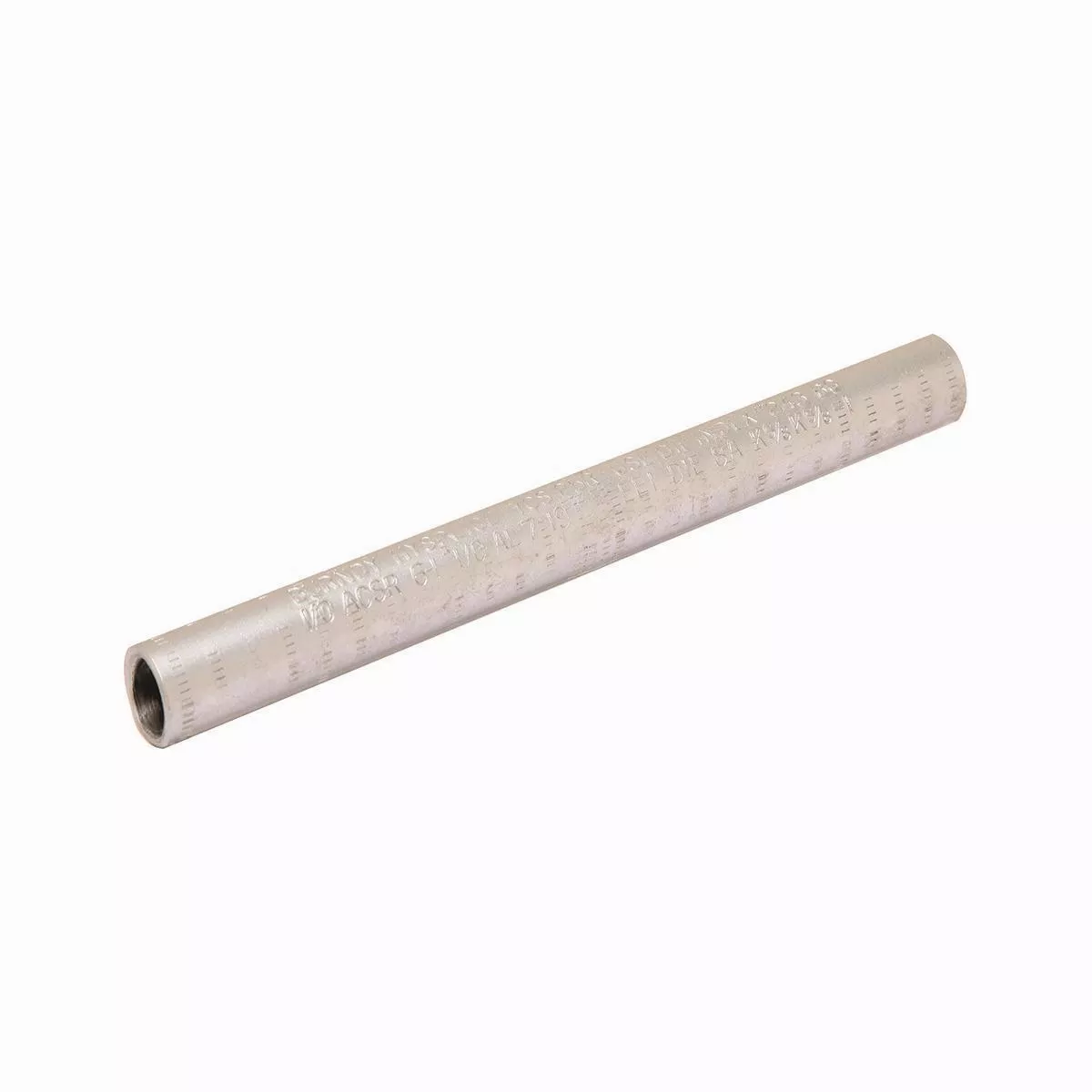

HYSPLICE AL sleeve with staked cable stop, designed to withstand jumper loop tensile and vibration stresses. ANSI C119.4 CLASS 2 (PARTIAL TENSION), 7-1/8 IN L.Features: HYSPLICE Sleeve Designed To Withstand Jumper Loop Tensile And Vibration Stresses, Made Of Aluminum With Staked-In Cable Stop, Installed With Same Die As Equivalent Fulltension Sleeves, Pre-Filled With PENETROX Joint Compound, Die Index: 243 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W243 Die, (6), WBG Die, (10), Y35, Y750 Tool, U243 Die, (3), UBG Die, (6), Y45 Tool, U243 Die With PT-6515 Adapter, (3), UBG Die With PT-6515 Adapter, (6), Y46 Tool, U243 Die With PUADP-1 Adapter, (3), UBG Die With PUADP-1 Adapter, (6), Conductor Type: ACSR, 6201, 5005, Aluminum
HYSPLICE Sleeve designed to withstand jumper loop tensile and vibration stresses
Made of aluminum with staked-in cable stop
Pre-Filled with PENETROX Joint Compound and Capped
Specifications
Brand Name
Burndy
Sub Brand
Hysplice™
Item Name
Compression Sleeve
Type
YCS-R
Conductor Type
ACSR, 6201, 5005, Aluminum
Conductor Size
1/0 AWG
Length
7-1/8 in
Material
Aluminum
Series
YCS-R
Color
Black
Standards
RUS Accepted, RoHS Compliant
Application
ACSR, All Aluminum, 6201, 5005 and Compressed Conductors
UPC
781810820513
