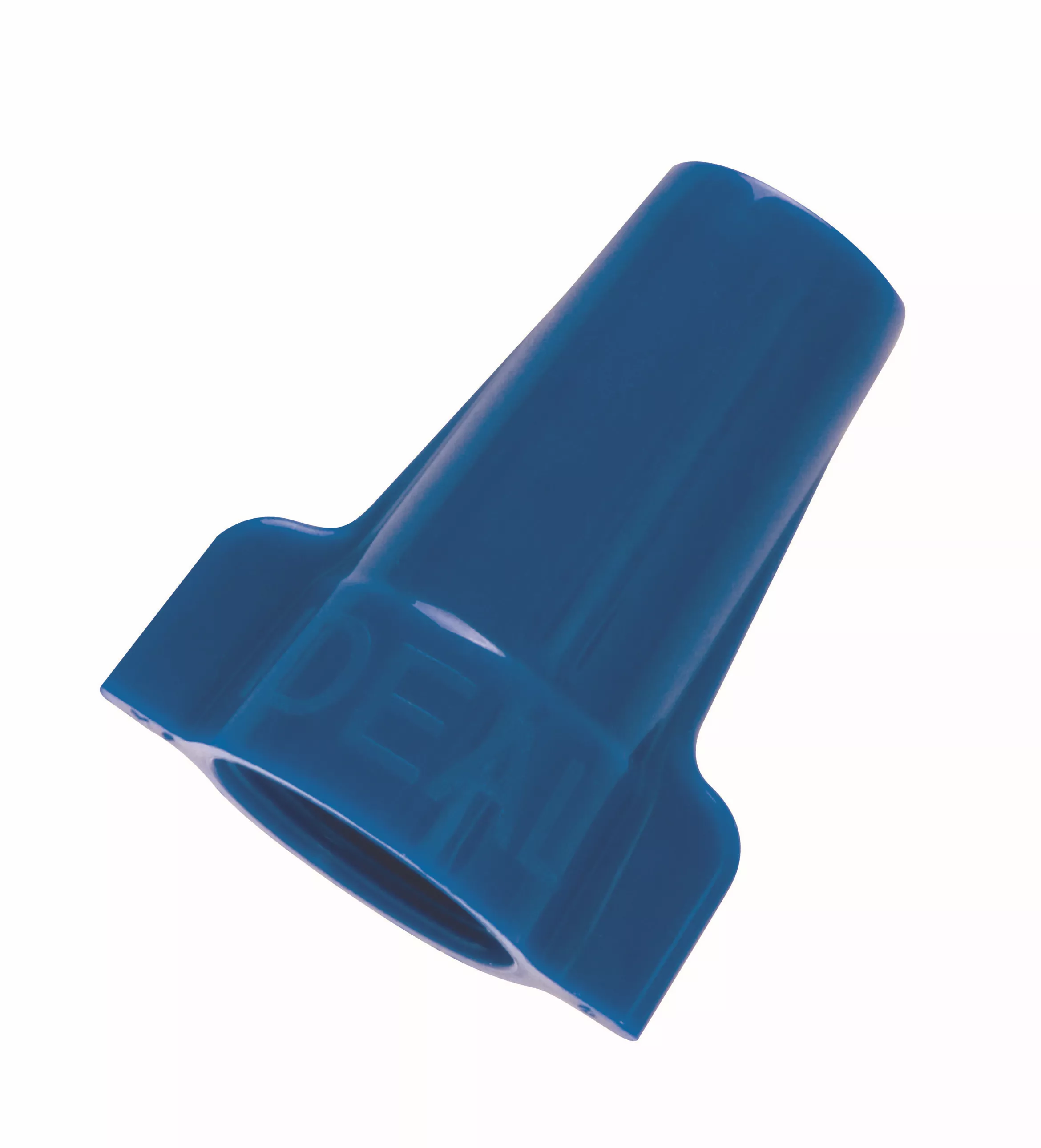

Wing-Nut® wire connector is specially designed contoured wings provide a secure grip for extra leverage on maximum wire combinations. Live-action spring expands to accept wire shape and size with no pre-twisting required. Square-wire spring threads directly onto conductors for fast, secure connections. Deep skirt helps protect against flash-over and turned-back strands for maximum dielectric protection. Accepts 3 12 to 2 6 w/1 12 AWG wire combinations. Rated for 600 Volt maximum. Sold in multiples of 50.
Largest range in the Industry – from 2 18 to up 4 10
High-leverage, contoured wing provides superior torque on every twist
Wide range, live-action spring handles small combinations and expands to accommodate large combinations as you need it
Copolymer shell expands for smooth, progressive tightening providing dependable connections
Removable for repeat usage on same size or larger combinations
Specifications
Brand Name
Ideal
Sub Brand
Wing Nut®
Type
Twist-On
Voltage Rating
600 V
Number of Conductors
1 to 6
Material
Flame-Retardant Polypropylene
Color
Blue
Standards
CSA Certified to C22.2 188, UL Listed to 486C, complies with Federal Specification W-S-610E, RoHS Compliant
Application
Insulating or Joining 2 or more conductors
UPC
783250304547
