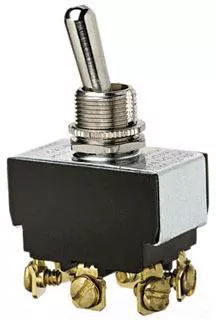

Heavy-duty toggle switch with rugged long-wearing solid brass/nickel-plated bushings is great for power tool and motor control switch applications. Consists of 1/2 inch diameter mounting hole.
Great for power tool and motor control switch applications
Rugged long-wearing solid brass/nickel-plated bushings
1/2 in. diameter mounting hole
Dielectric Strength: 1500V
Mechanical Life: 100,000 cycles
Operating Temperature: 32°F to 185°F (0°C to 85°C)
DC Rating: Factory tested 100,000 cycles to 21 Amp 14.8 VDC
Specifications
Brand Name
Ideal
Item Name
Toggle Switch
Type
3 Position
Voltage Rating
125 – 250 V
Amperage Rating
10/20 A
Number of Poles
2 Pole
Actuator
Knob
Action
DPDT
Terminal Connection
Screw
Operating Cycles
100k
Mounting
12.7 mm Hole
Standards
CSA, RU Listed, RoHS
Application
For Power Tool And Motor Control Switch Applications
UPC
783250573547
