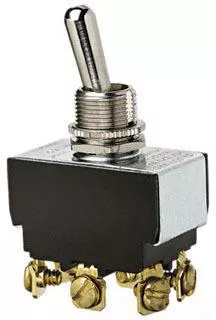

Ideal Toggle switch has ON-OFF-ON circuitry and DPDT configuration for convenient operation. It has power rating of 20 Amps at 125 VAC, 10 Amps at 227 VAC and 1-1/2 hp at 125 – 250 VAC. It has a dielectric strength of 1500 Volts and long mechanical life of 100000 cycles. Switch features sturdy longwearing solid brass/nickel-plated bushings for durable and convenient use.Switch has six spade terminals for easy connections. It is suitable for power tool and motor control applications. Switch measures 0.760 Inch x 1.300 Inch x 0.800 Inch. It operates at a temperature of 0 to 85 deg C. It has 1/2-Inch mounting hole for easy installation. Switch meets CSA/RU/RoHS standards.
Specifications
| Brand Name | Ideal | Item Name | Toggle Switch |
| Type | 3-Position | Voltage Rating | 125 – 277 V |
| Amperage Rating | 10/20 A | Number of Poles | 2 |
| Actuator | Switch Position Knob | Contact Configuration | DPDT |
| Action | DPDT | Terminal Connection | Screw |
| Operating Cycles | 100k | Material | Metal |
| Mounting | 1/2 IN Hole Diameter | Standards | CSA, RU Listed, RoHS |
| Application | For Power Tool And Motor Control Switch Applications | UPC | 783250573493 |
