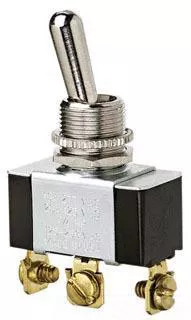

Standard toggle switch with rugged long-wearing solid brass/nickel-plated bushings is great for power tool and motor control switch applications. Consists of 1/2 inch diameter mounting hole.
Great for power tool and motor control switch applications
Rugged long-wearing solid brass/nickel-plated bushings
1/2 in. diameter mounting hole
Dielectric Strength: 1500V
Mechanical Life: 100,000 cycles
Operating Temperature: 32°F to 185°F (0°C to 85°C)
DC Rating: Factory tested 100,000 cycles to 21 Amp 14.8 VDC
Specifications
Brand Name
Ideal
Item Name
Toggle Switch with Bezel
Type
3 Position
Voltage Rating
125 – 277 V
Amperage Rating
10/20 A
Number of Poles
1
Actuator
Knob
Action
SPDT
Terminal Connection
Screw
Operating Cycles
100k
Dimensions
14.47 mm W x 15.49 mm H
Mounting
12.7 mm Hole
Standards
CSA, RU Listed, RoHS
Application
For Power Tool And Motor Control Switch Applications
UPC
781789740133
