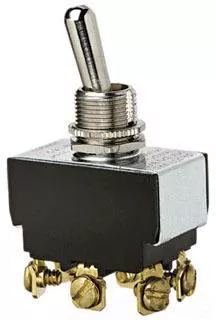

Heavy-duty toggle switch with rugged long-wearing solid brass/nickel-plated bushings is great for power tool and motor control switch applications. Consists of 1/2 inch diameter mounting hole.
Specifications
| Brand Name | Ideal | Item Name | Toggle Switch with Bezel |
| Type | 2 Position | Voltage Rating | 125 – 277 V |
| Amperage Rating | 10/20 A | Number of Poles | 2 Pole |
| Actuator | Knob | Action | DPDT |
| Terminal Connection | Screw | Operating Cycles | 100k |
| Dimensions | 19.3 mm W x 20.32 mm H | Mounting | 12.7 mm Hole |
| Standards | CSA, RU Listed, RoHS | Application | For Power Tool And Motor Control Switch Applications |
| UPC | 783250573578 |
